Pelješac Bridge

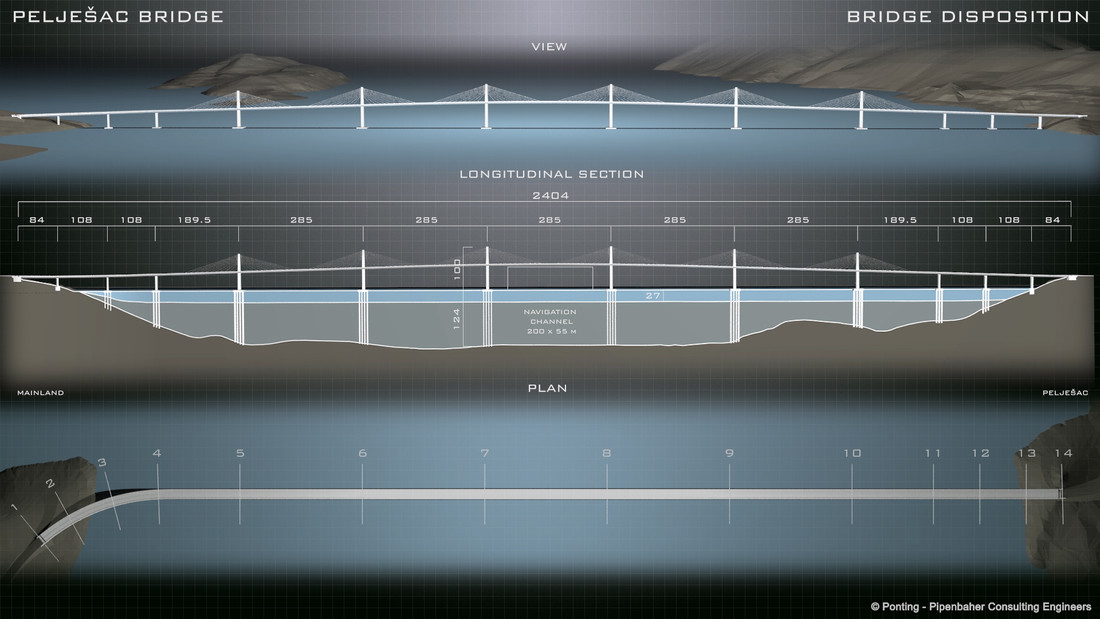

The Pelješac bridge is at the time the largest bridge project ongoing in Croatia and one will be one of the largest bridges in Europe. The bridge will connect the Croatian mainland with the Pelješac Peninsula on the Split - Dubrovnik Adriatic coastal Motorway near Komarna. The overall length of the bridge amounts 2404 m, with spans of 84 m + 2 x 108 m + 189.5 m + 5 x 285 m + 189.5 m +2 x 108 m + 84 m.

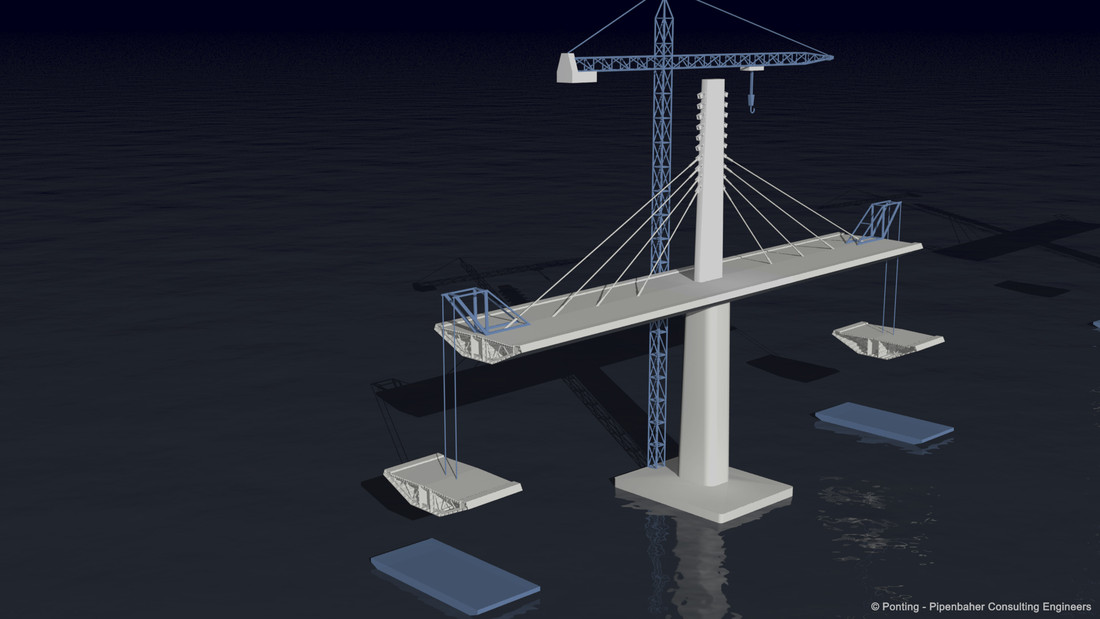

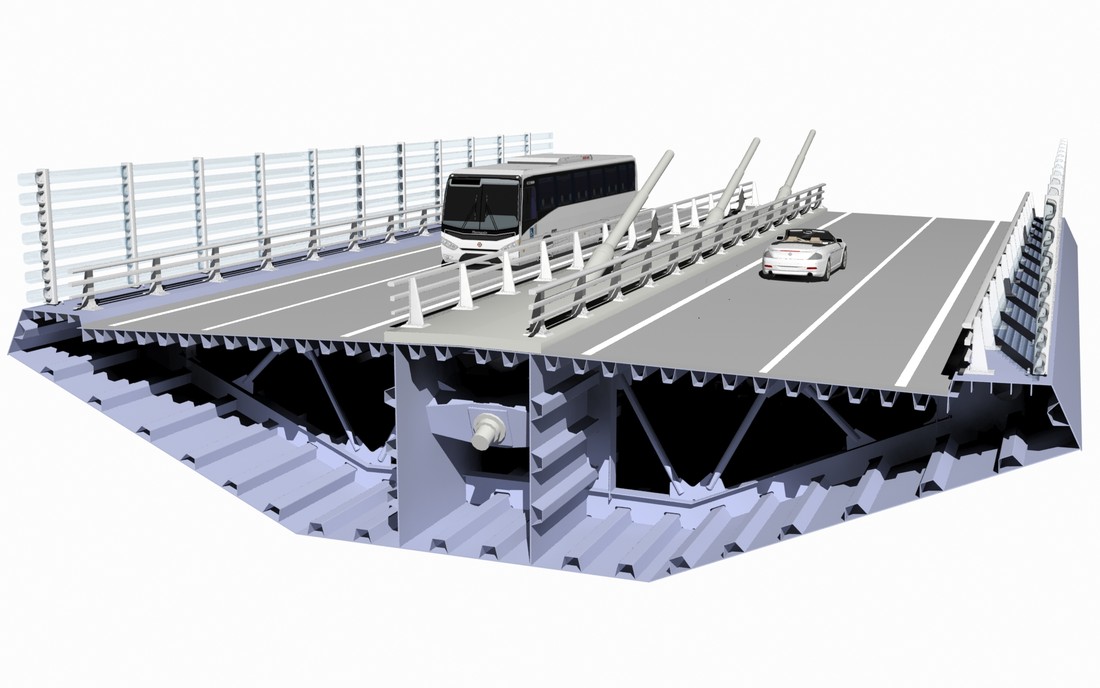

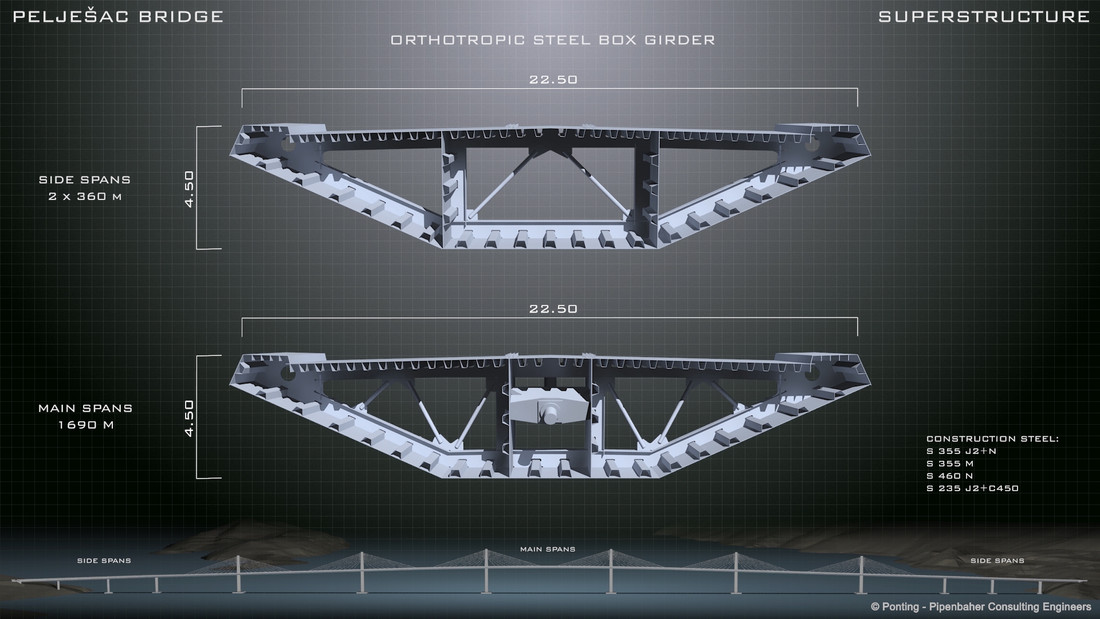

The bridge is multi-span extradosed cable-stayed bridge with an orthotropic steel deck. The width of the three-cell superstructure is 22.50 m. The pylon heights above the sea level differ from 75.4 m to 90.8 m. The bridge is founded deeply on driven steel piles of diameter 2.0 m, length from 55 m to 125 m. The central part of the bridge will be constructed by balanced cantilever construction method and approach parts will be constructed by incremental launching method. The average sea depth in bay is app. 27 m. Dimensions of navigation channel in central span are 250 m x 55 m.

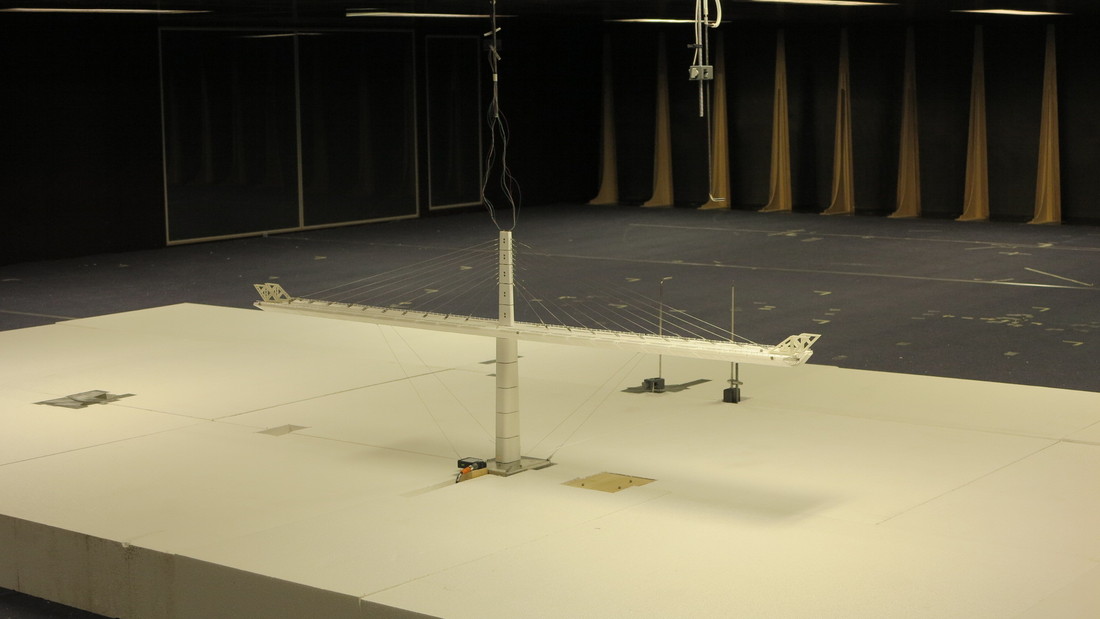

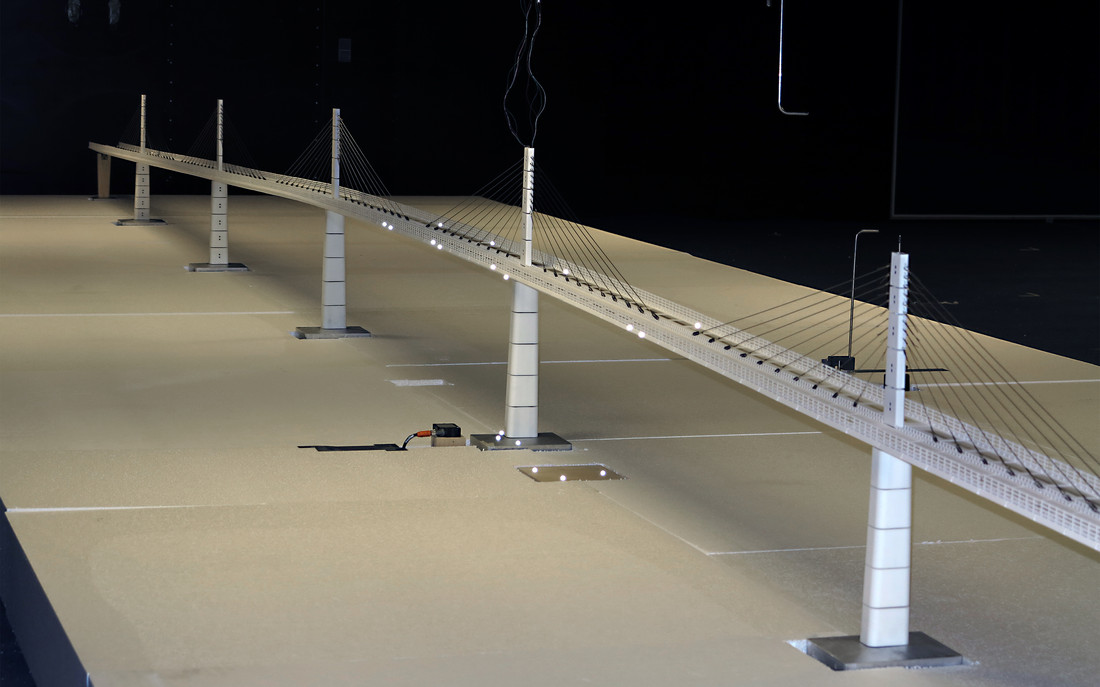

Ponting prepared preliminary and final design. Ponting also prepared complete CFD (Computational Fluid Dynamic) wind analysis and organized wind-tunnel tests which were performed by Force Technology from Denmark.

Project type
Highway bridge
Location
Komarna - Pelješac, Croatia
Year
2016
Status
Under construction
Ponting Services
Conceptual / Preliminary / Final design
Length
2.404 meters
Max. span
285 meters
Span arrangement
72.0 + 96.0 + 118.0 + 203.5 + 5 x 285.0 + 203.5 + 118.0 + 96.0 + 72.0 = 2404.0
Total pylon height
82,5 – 98 meters
Foundation type
Deep on driven steel piles, D = 2.0 m, length up to 124 m
Structure
Steel orthotropic superstructure
Construction
Balanced cantilever method
Client
Hrvatske ceste d.o.o., Zagreb, Croatia
Cooperators
Ponting - Pipenbaher Consulting Engineers
Contractor
China Road and Bridge Corporation (CRBC)
Awards
Jožef Mrak Award – Ljubljana, Slovenia, 2019
Publications
PIPENBAHER M. Design and analysis of the Pelješac bridge. December 2018, Građevinski fakultet Sveučilišta u Mostaru.
