Pedestrian overpass Mavrica

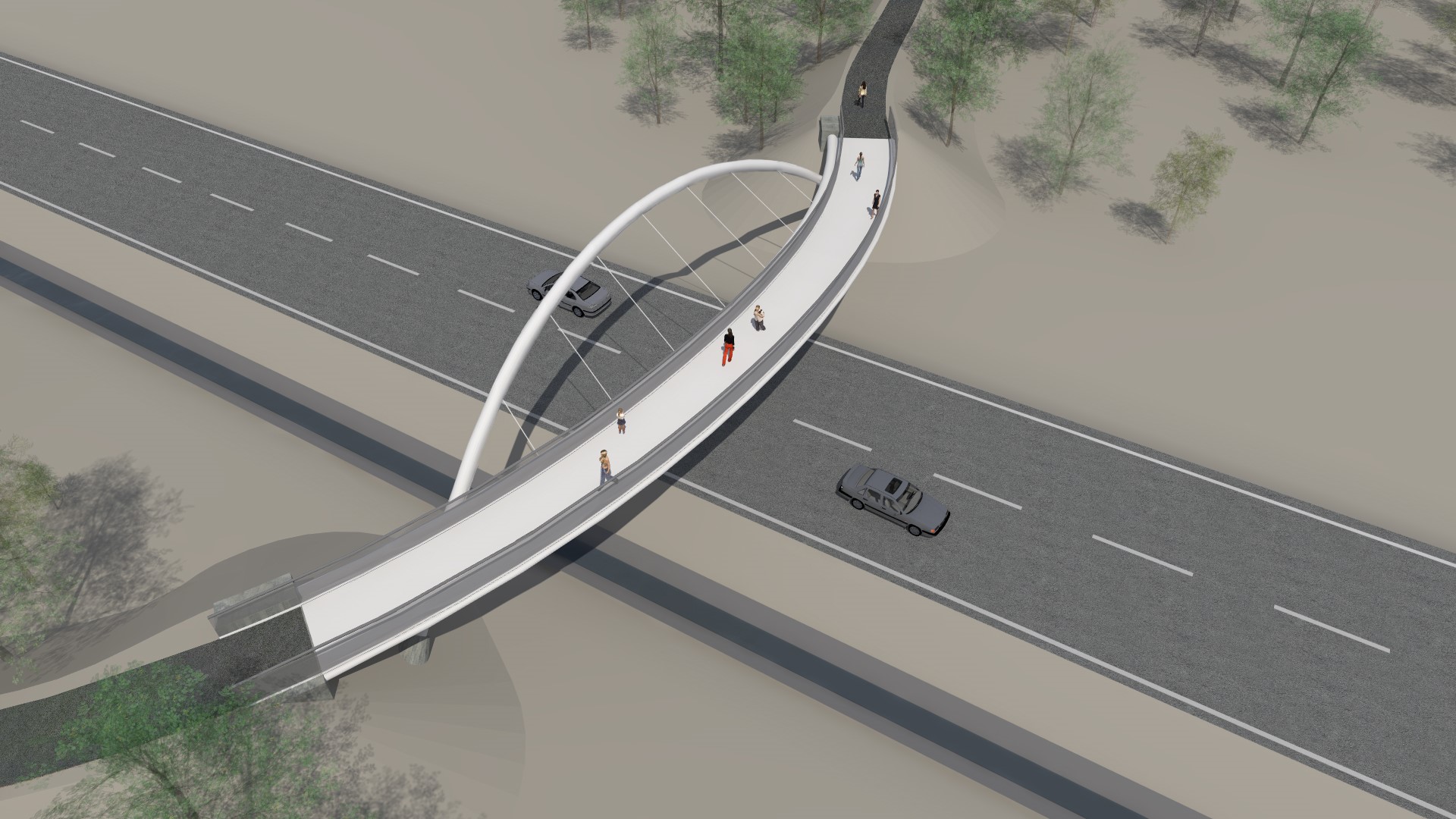

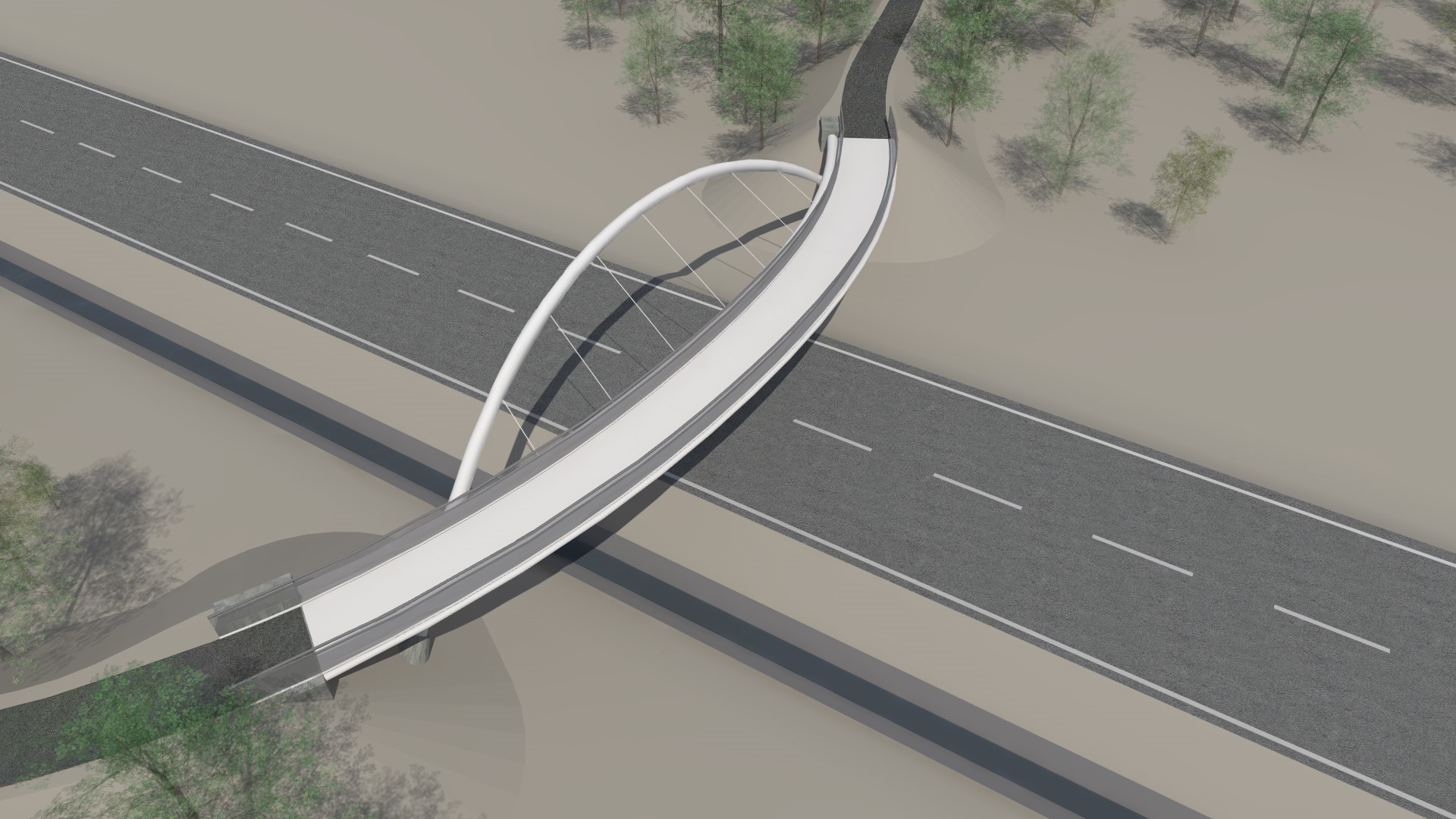

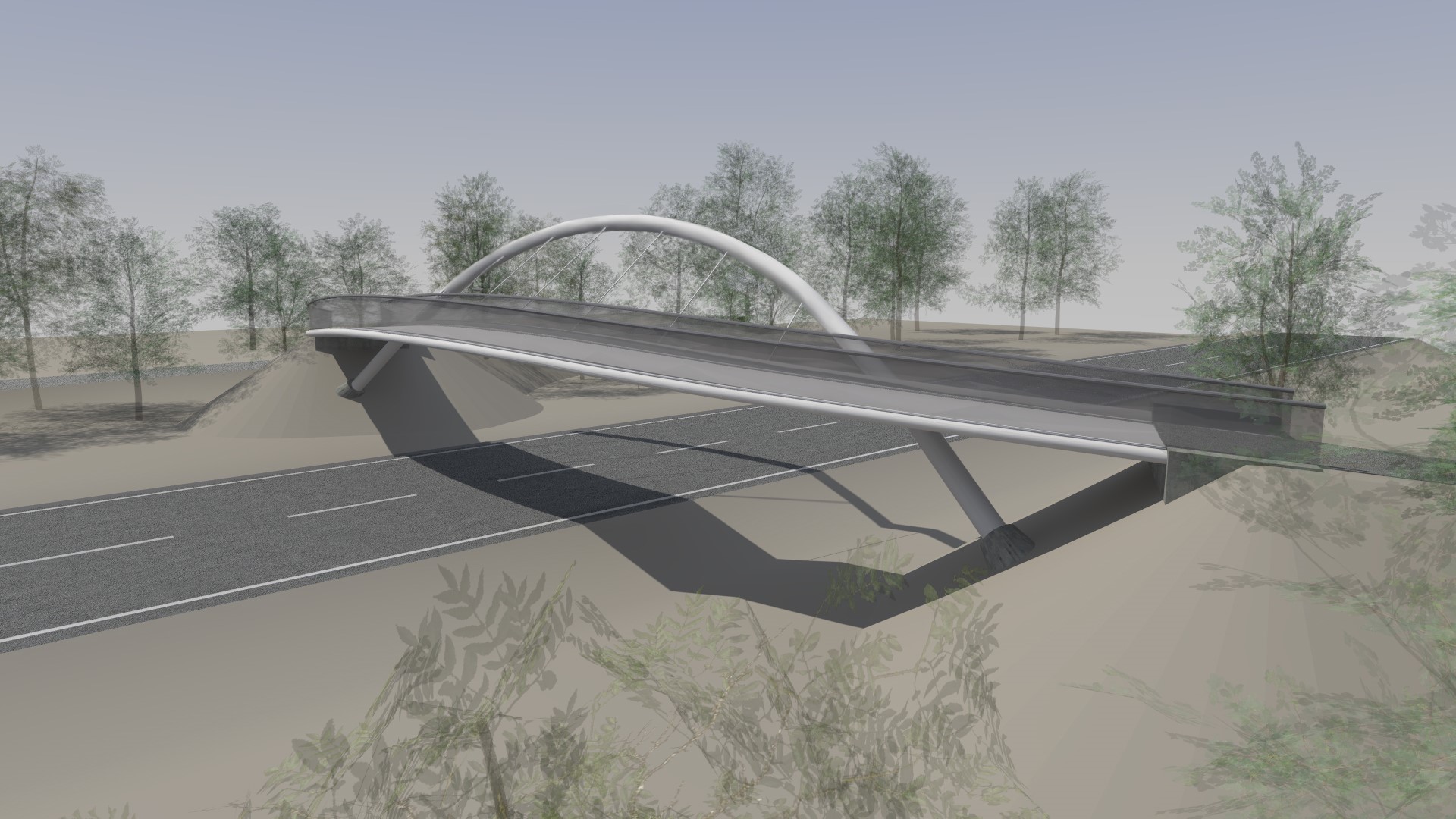

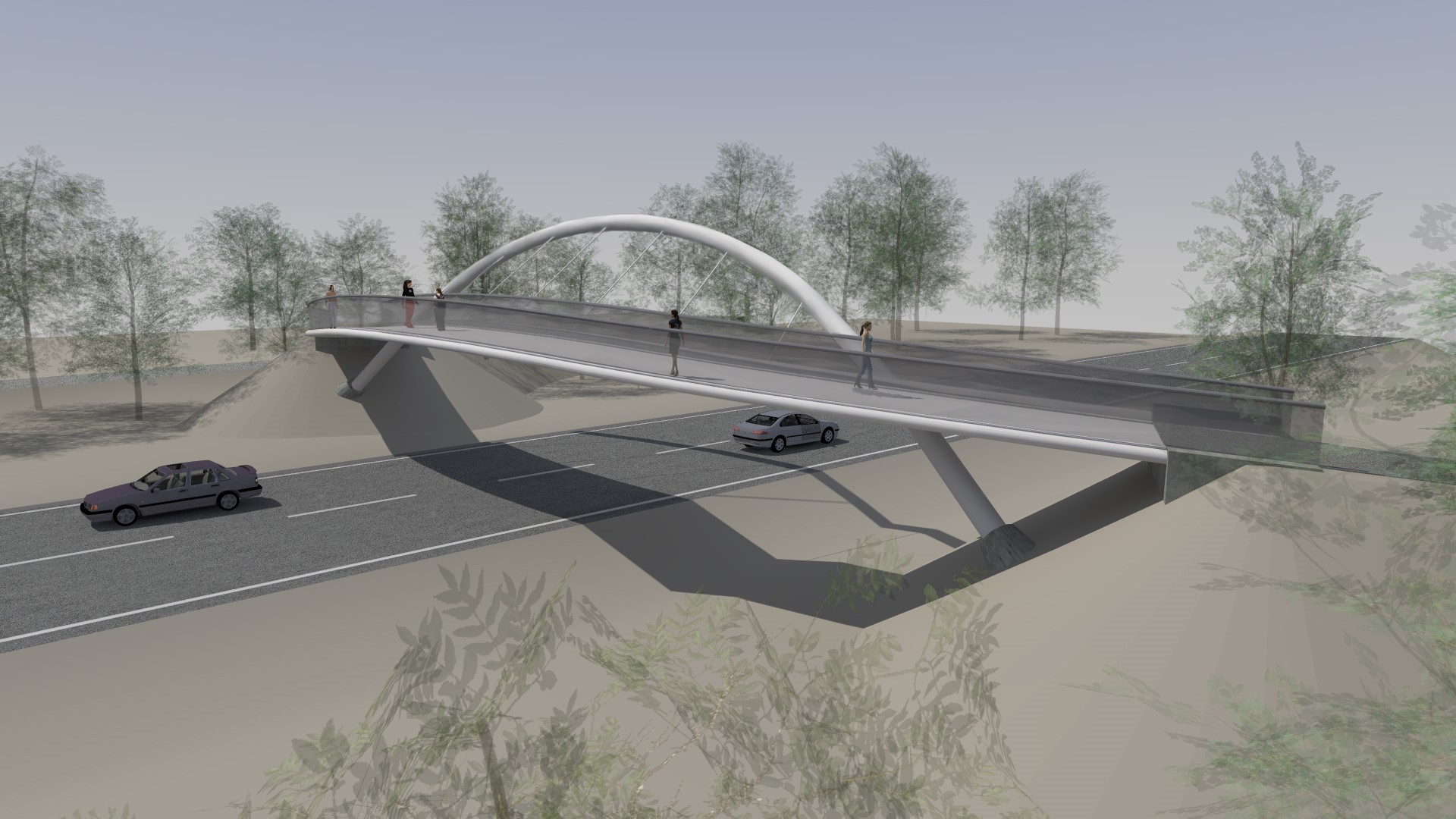

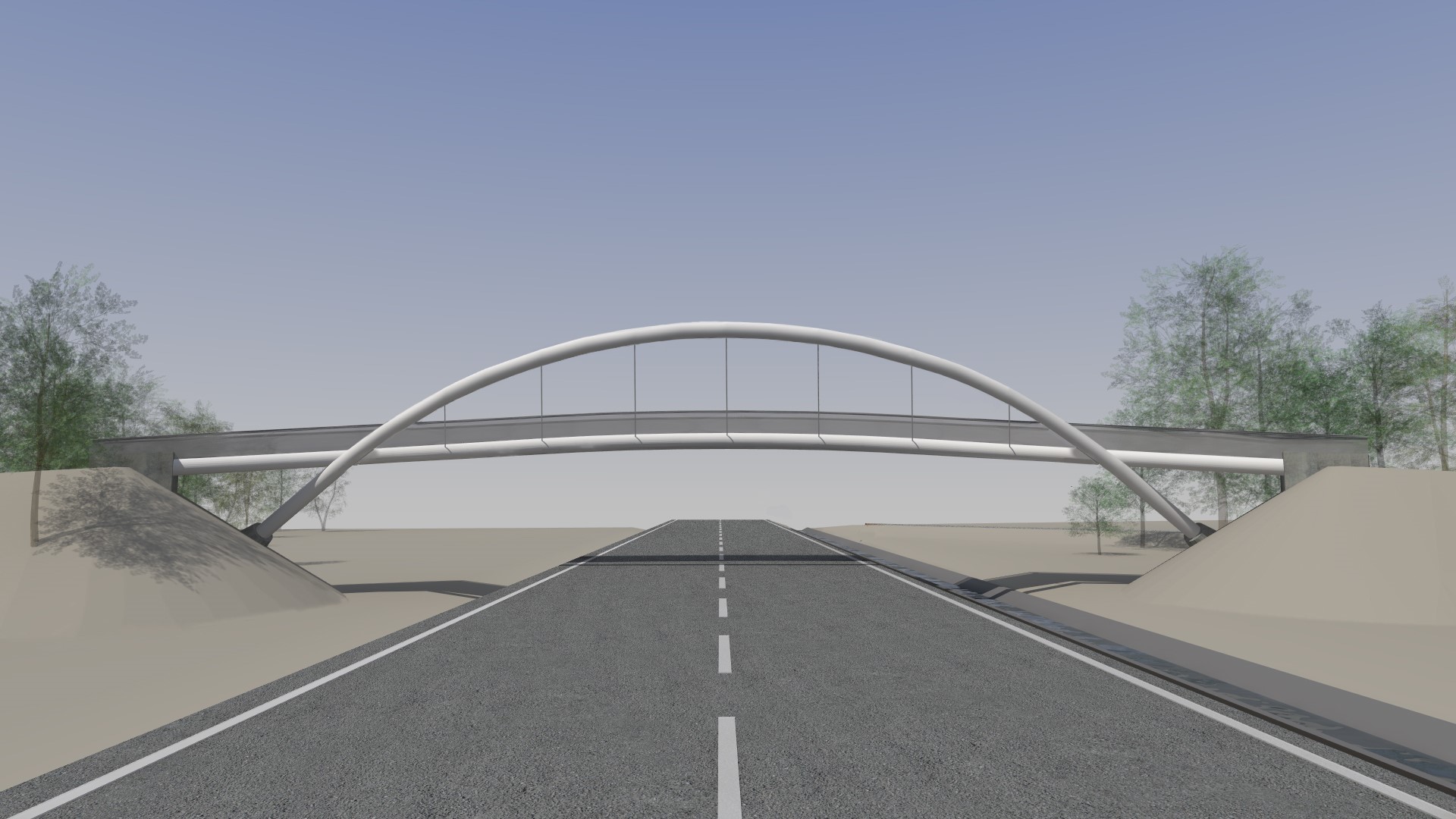

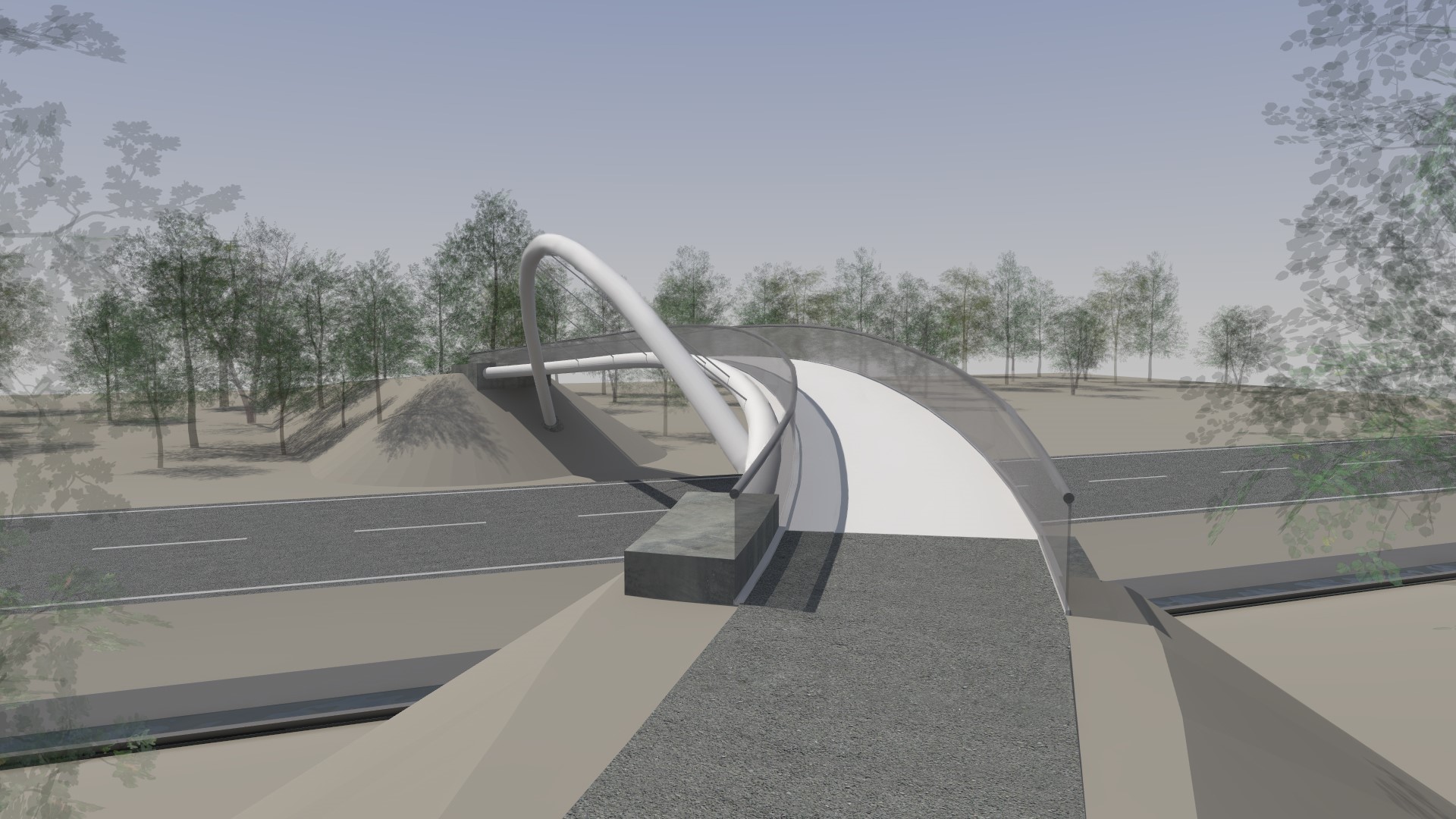

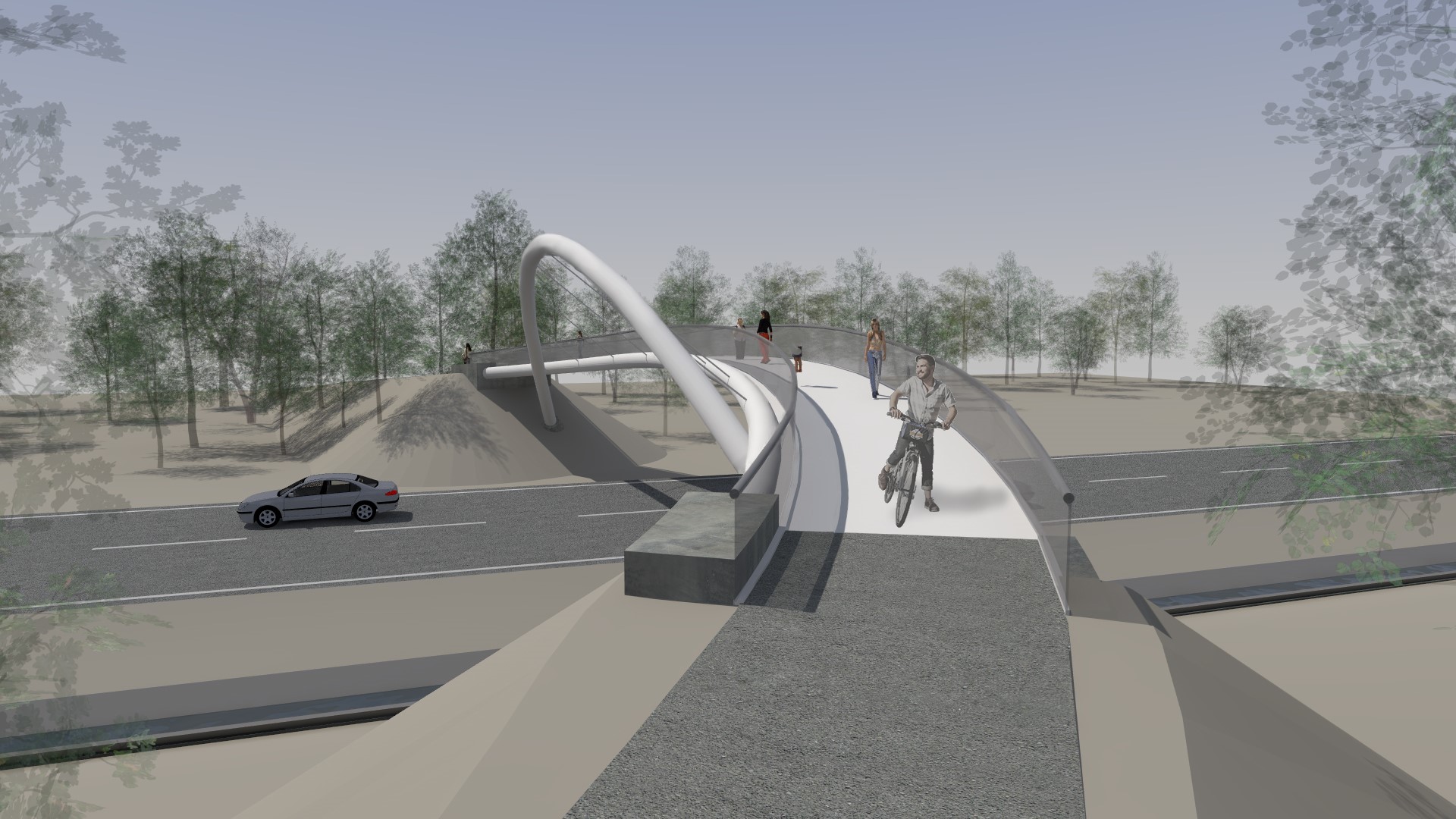

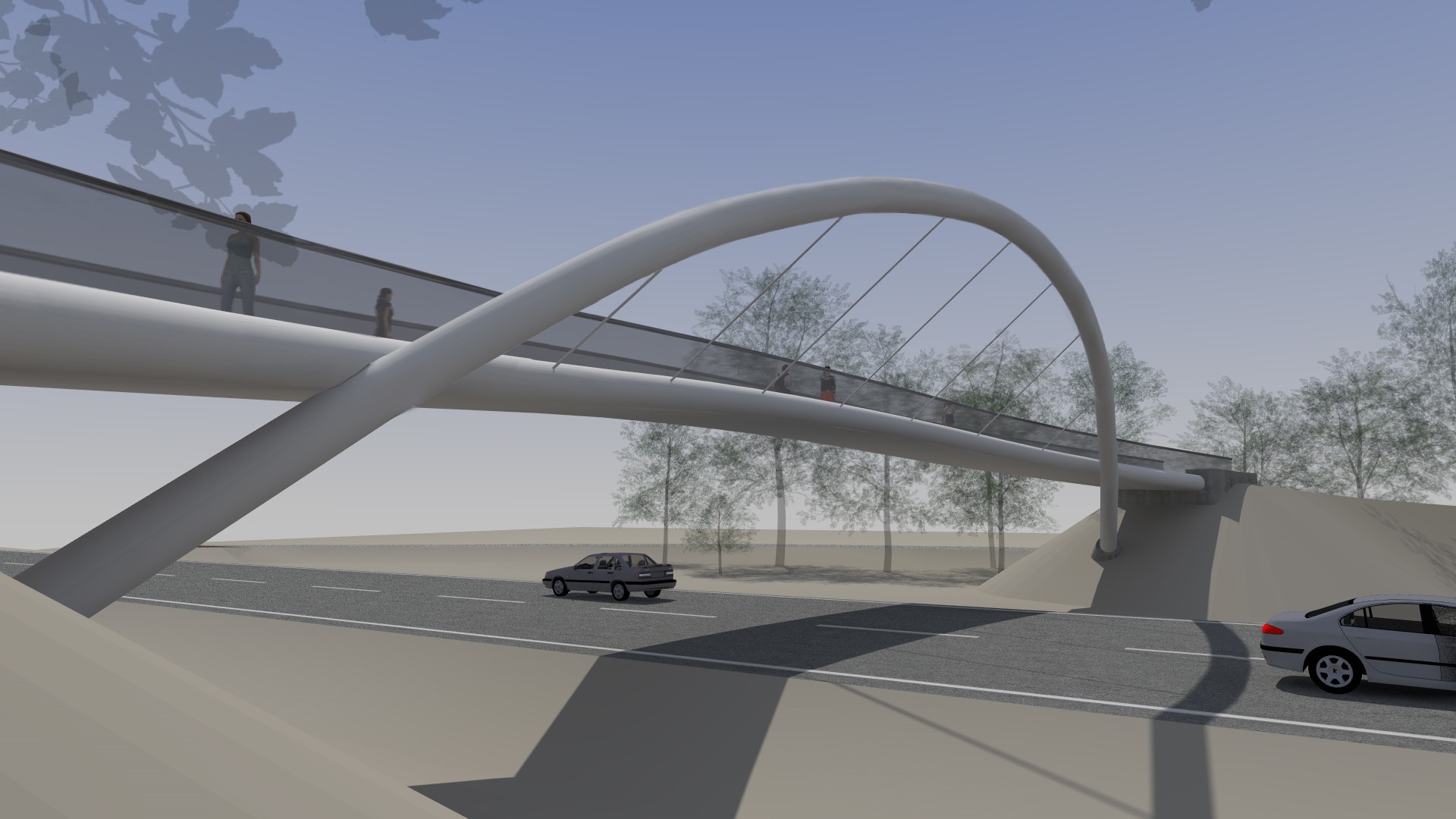

The Ponting proposal for the new pedestrian and cyclists overpass in Zalec (Slovenia) represents a curved steel structure, suspended by a inclined arch. The span of the bridge ammounts 44 m, that of the arch 42 m. The clear width of the bridge is set at 3.50 m, clear opening above the main road beneath the overpass at 4.80 m.
Project type
Pedestrian and cyclist overpass
Status
Competition, 1st prize
Structure
Curved suspended steel structure
Construction
Preasebled steel structure / cast in situ concrete
