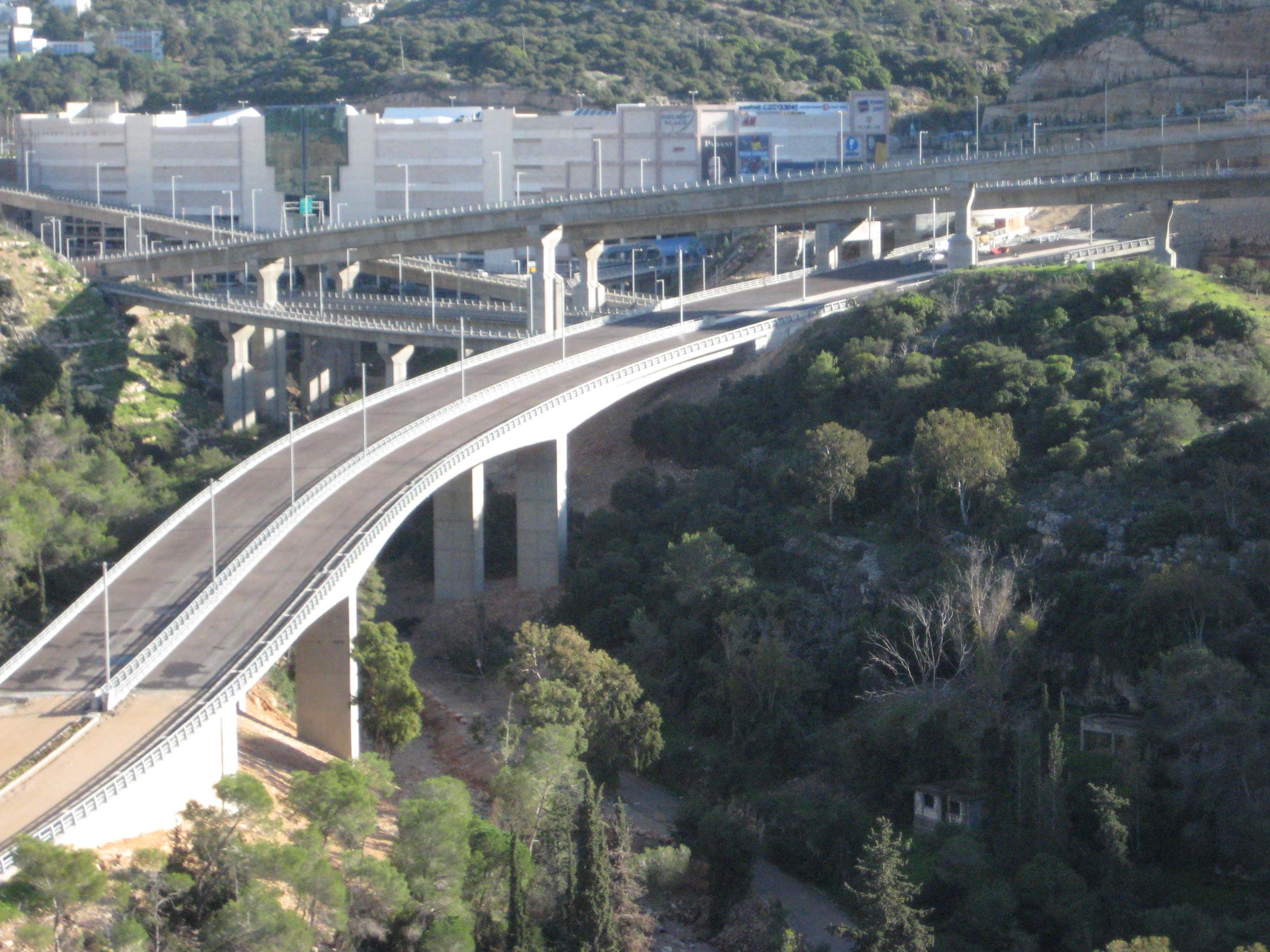

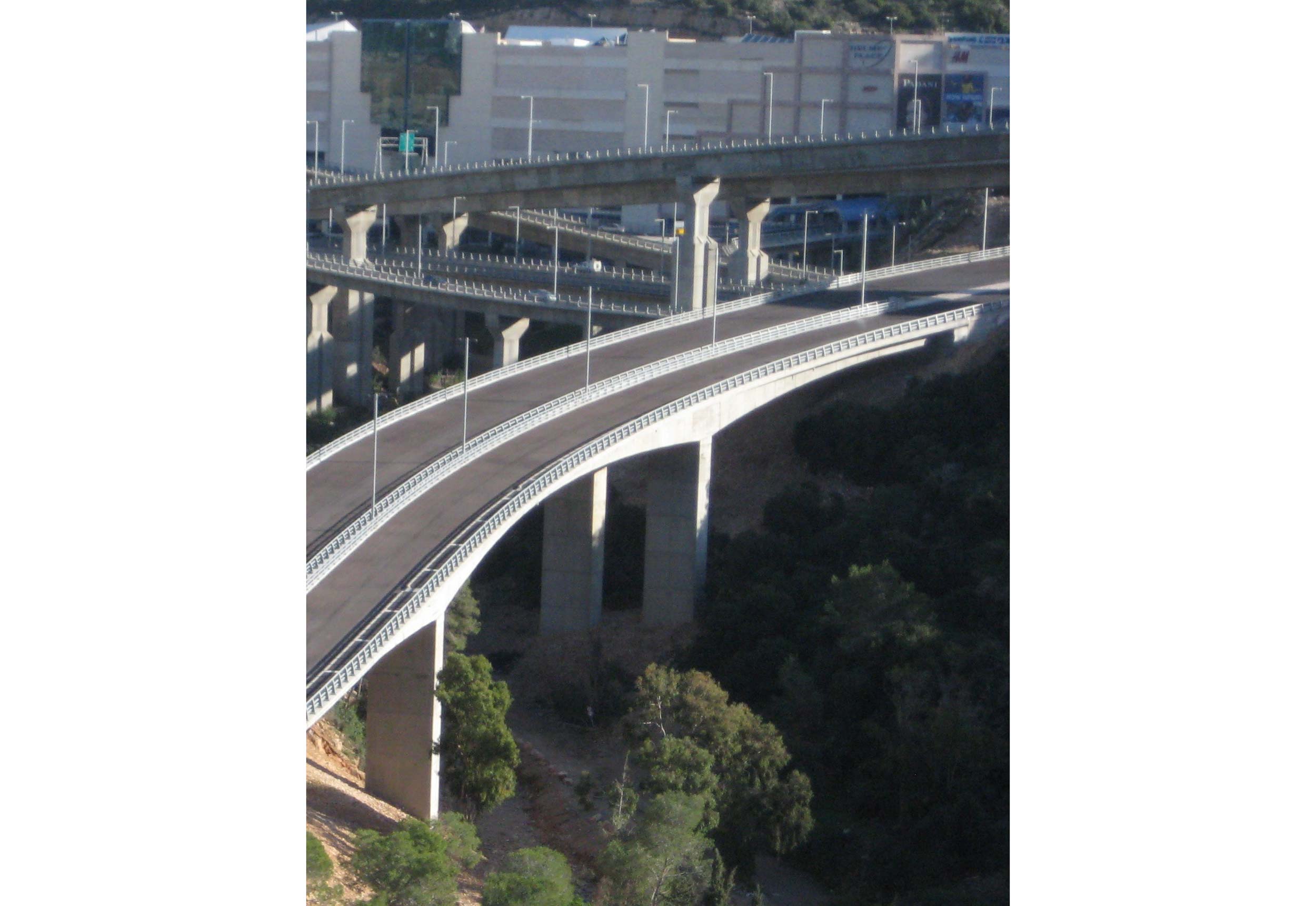

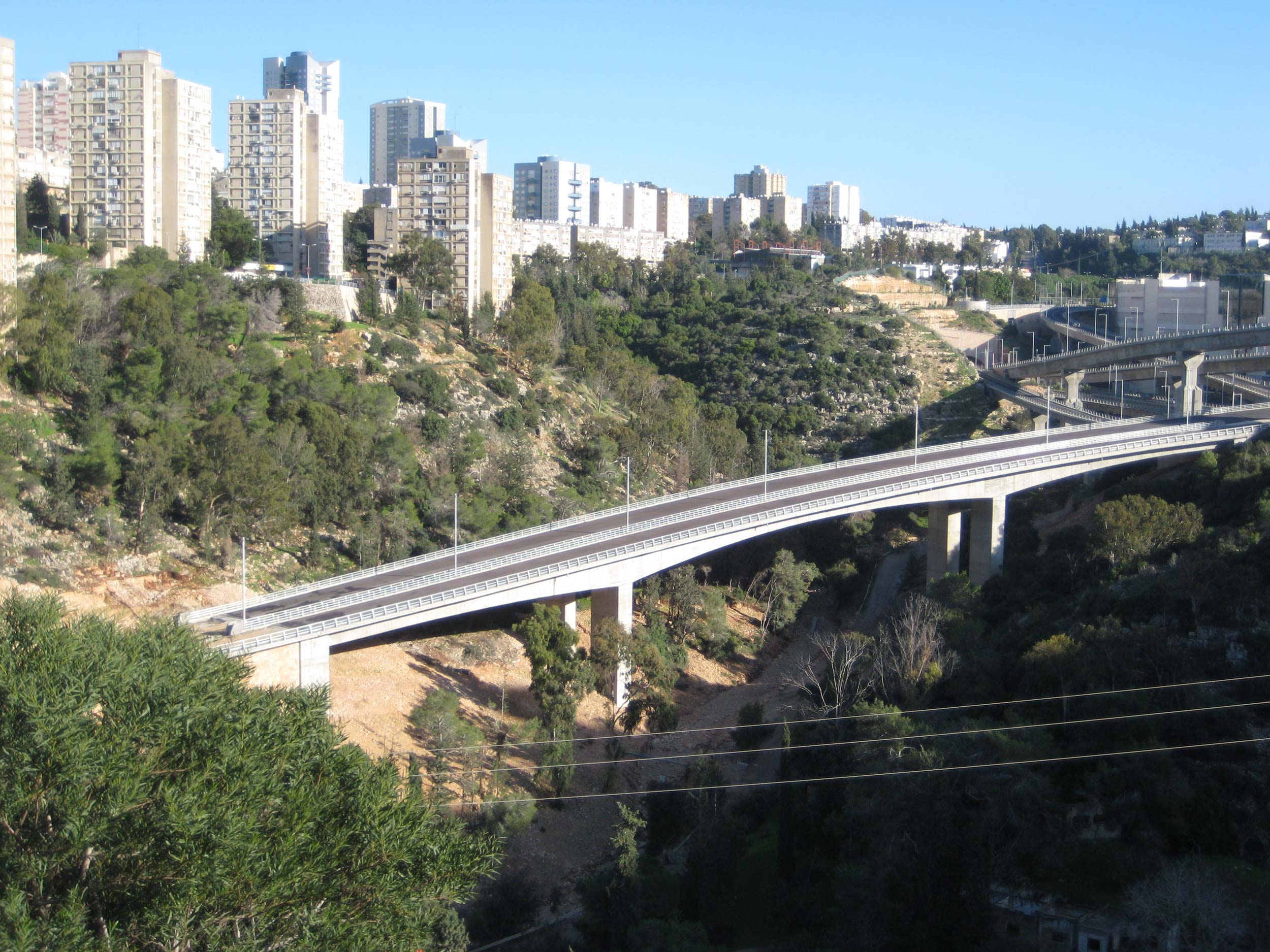

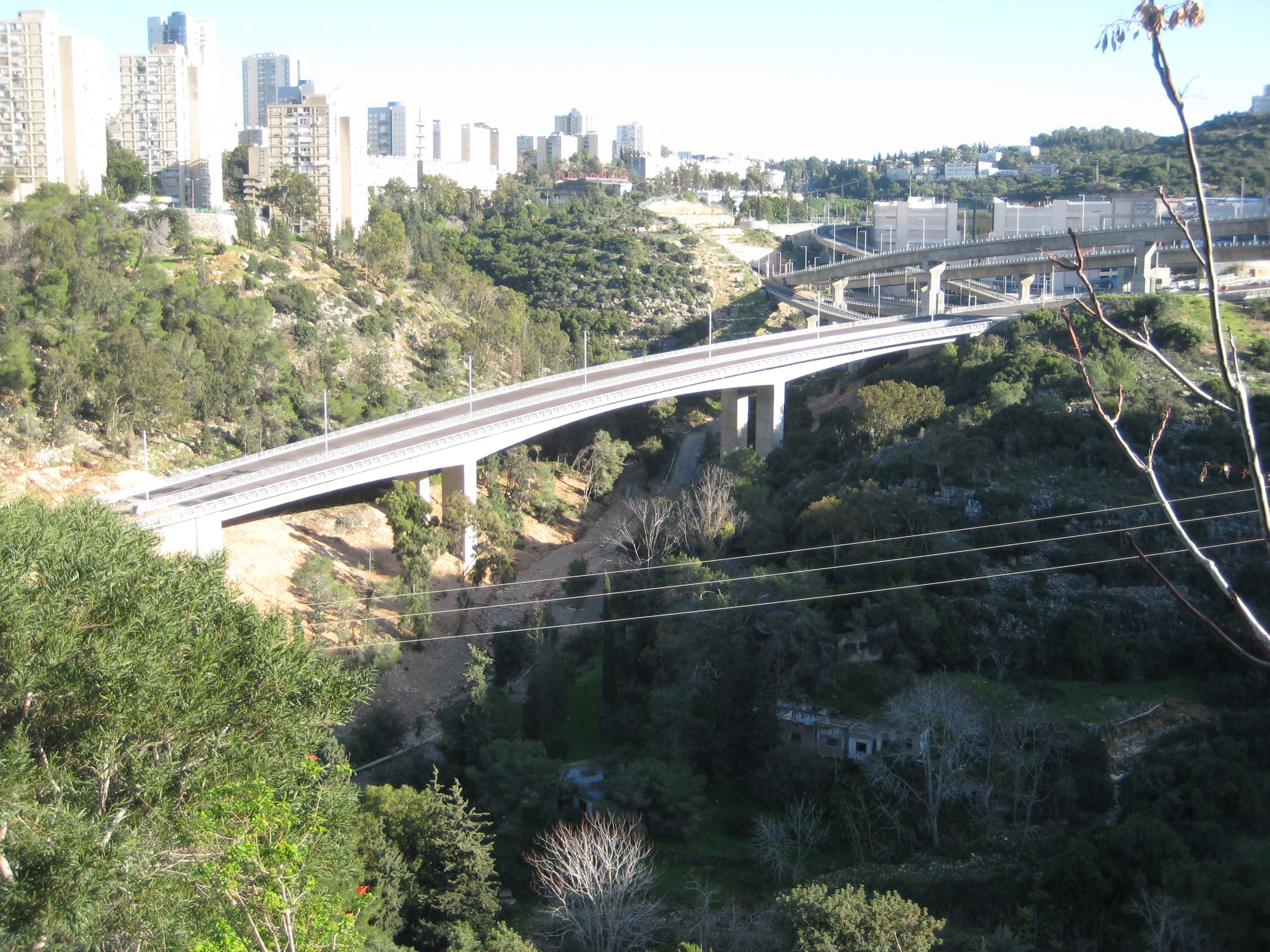

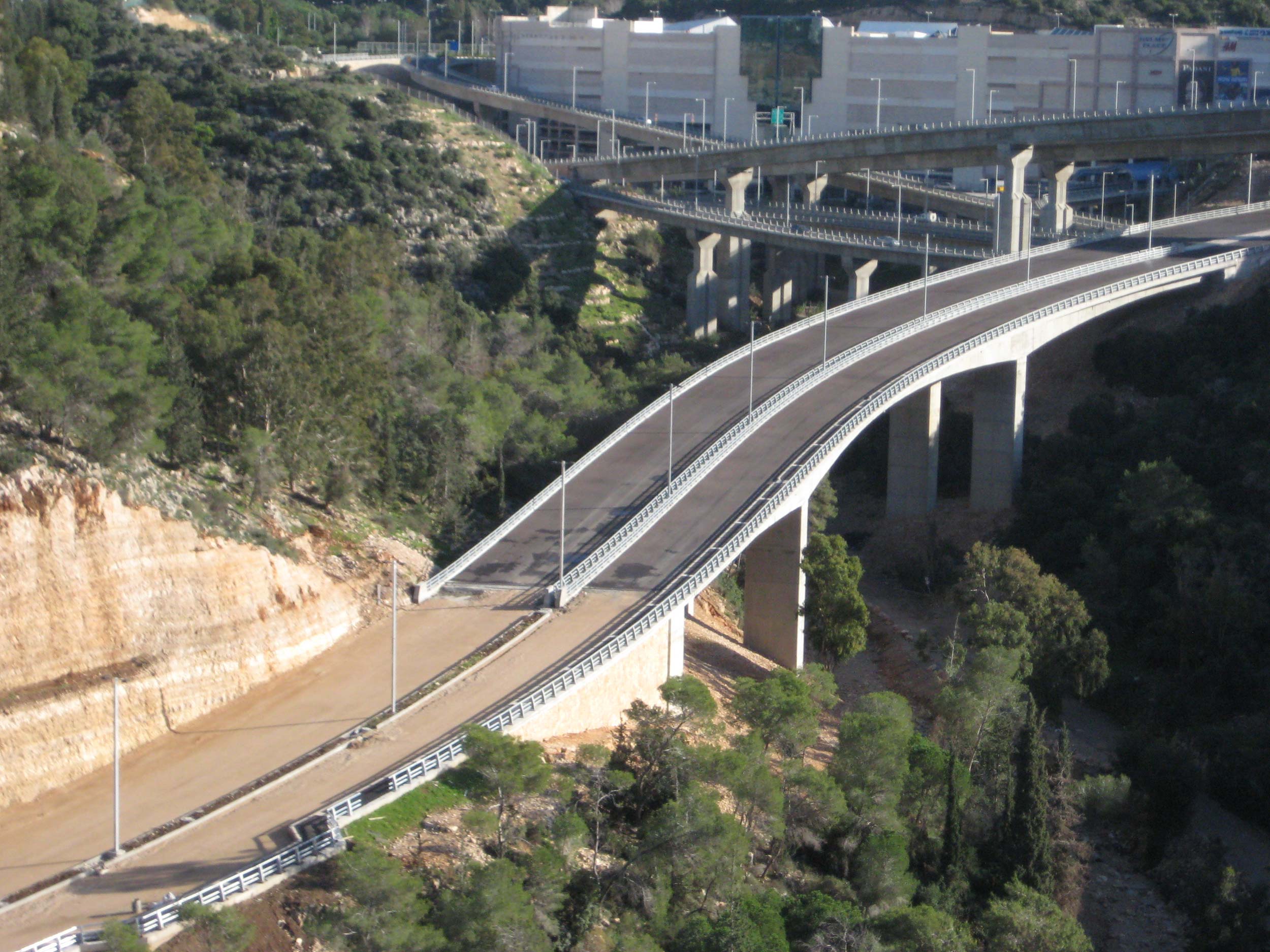

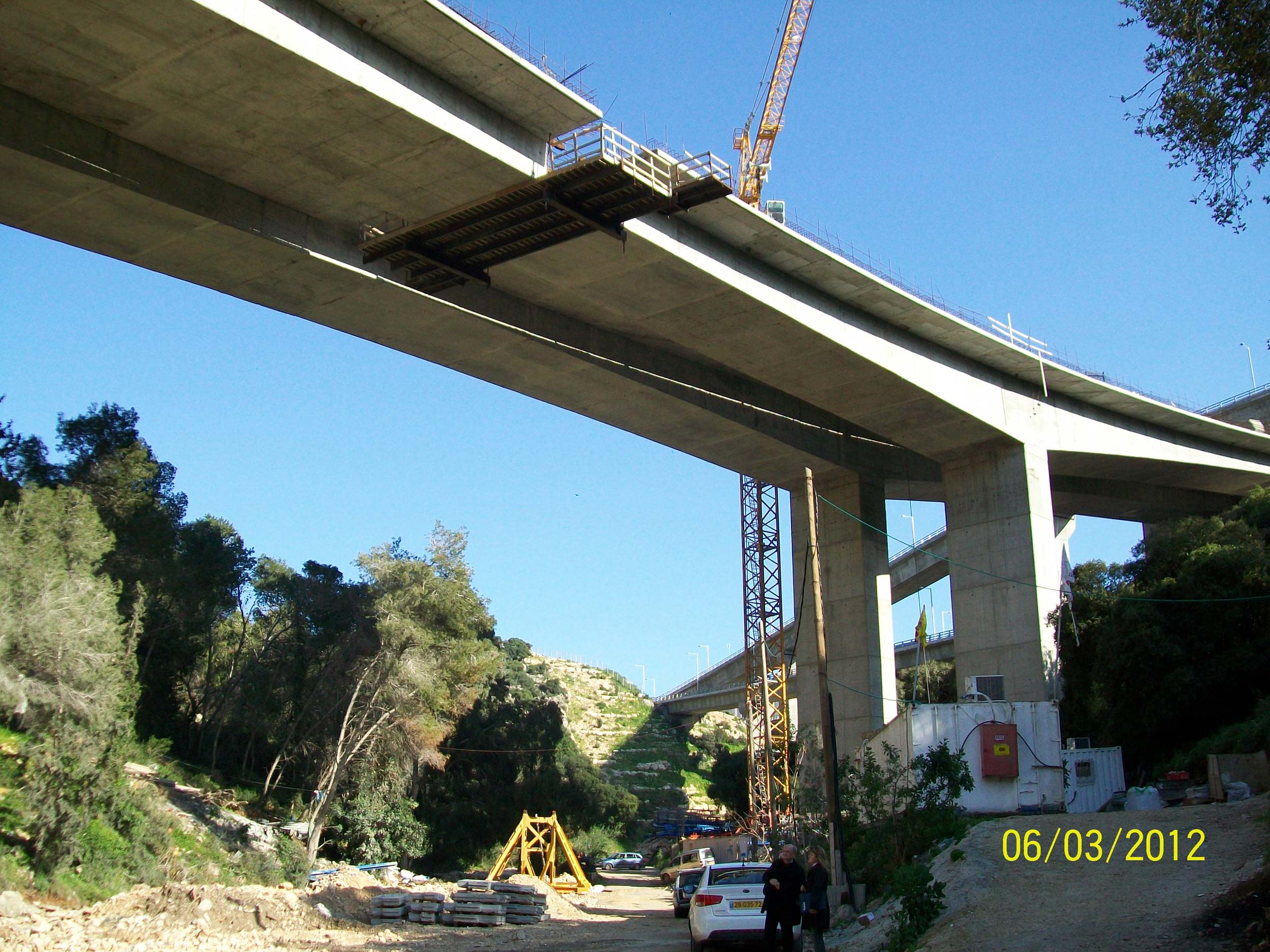

Giborim HW Bridge


Project type
Highway bridge
Location
Haifa, Israel
Year
2013
Status
Completed
Ponting Services
Preliminary / Final / Detailed design
Length
2 x 207 meters
Max. span
92 meters
Span arrangement
57.5 + 92.0 + 57.5 = 207.0
Pier height
Up to 28 meters
Width
11.0 m and 11.5 – 13.1 meters
Foundation type
Deep on massive concrete blocks
Structure
Pre-stressed concrete structure
Construction

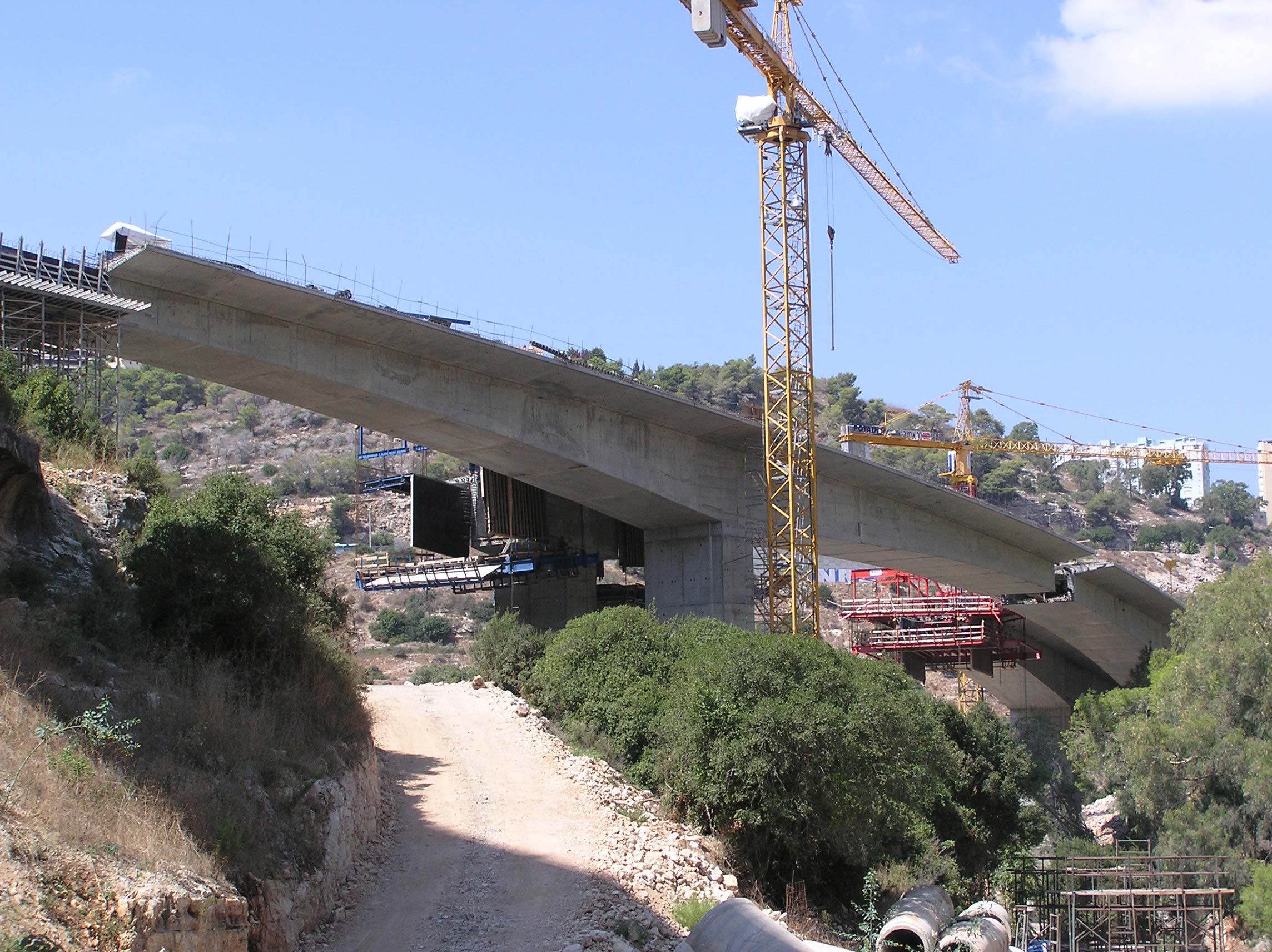

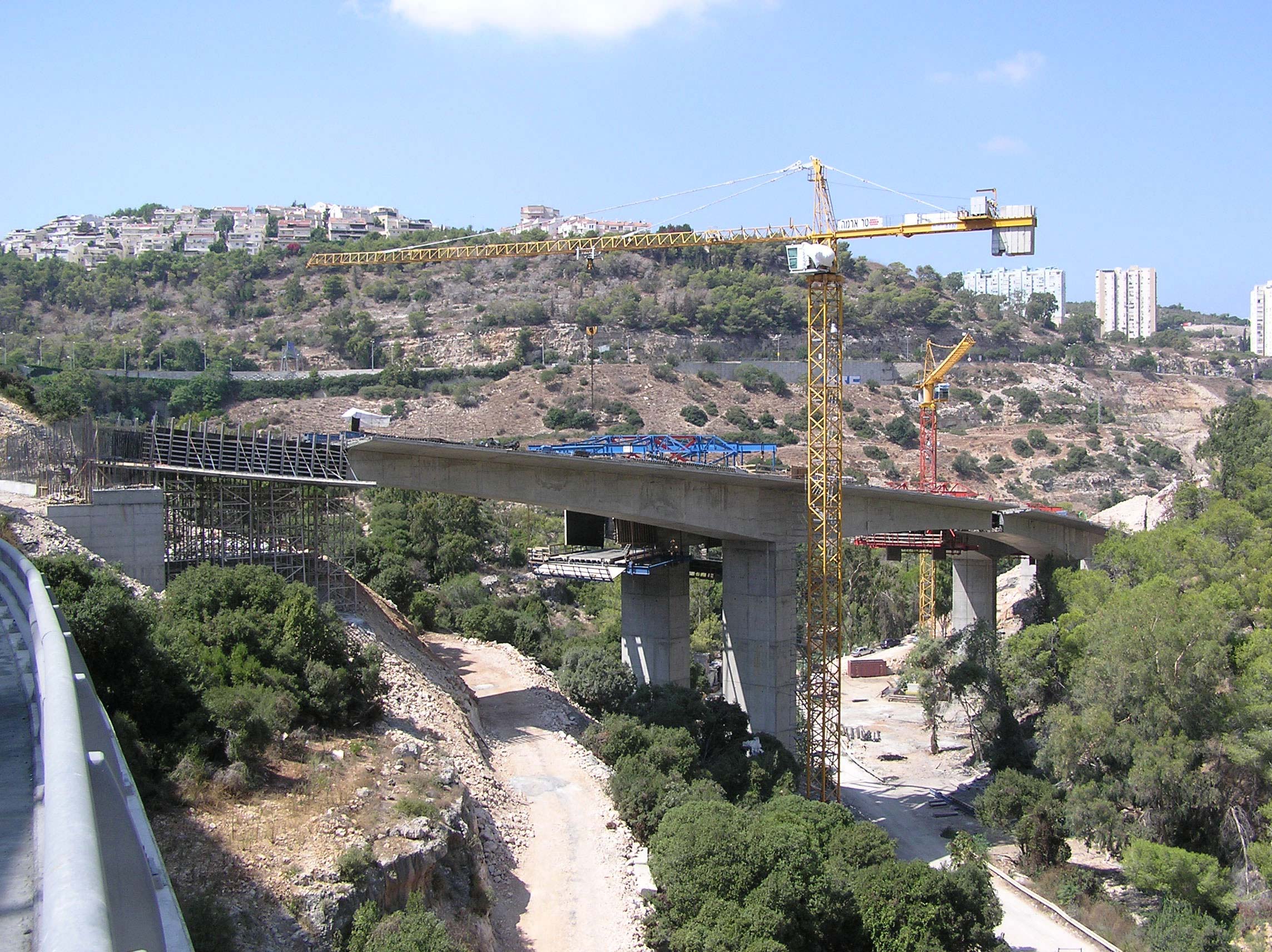

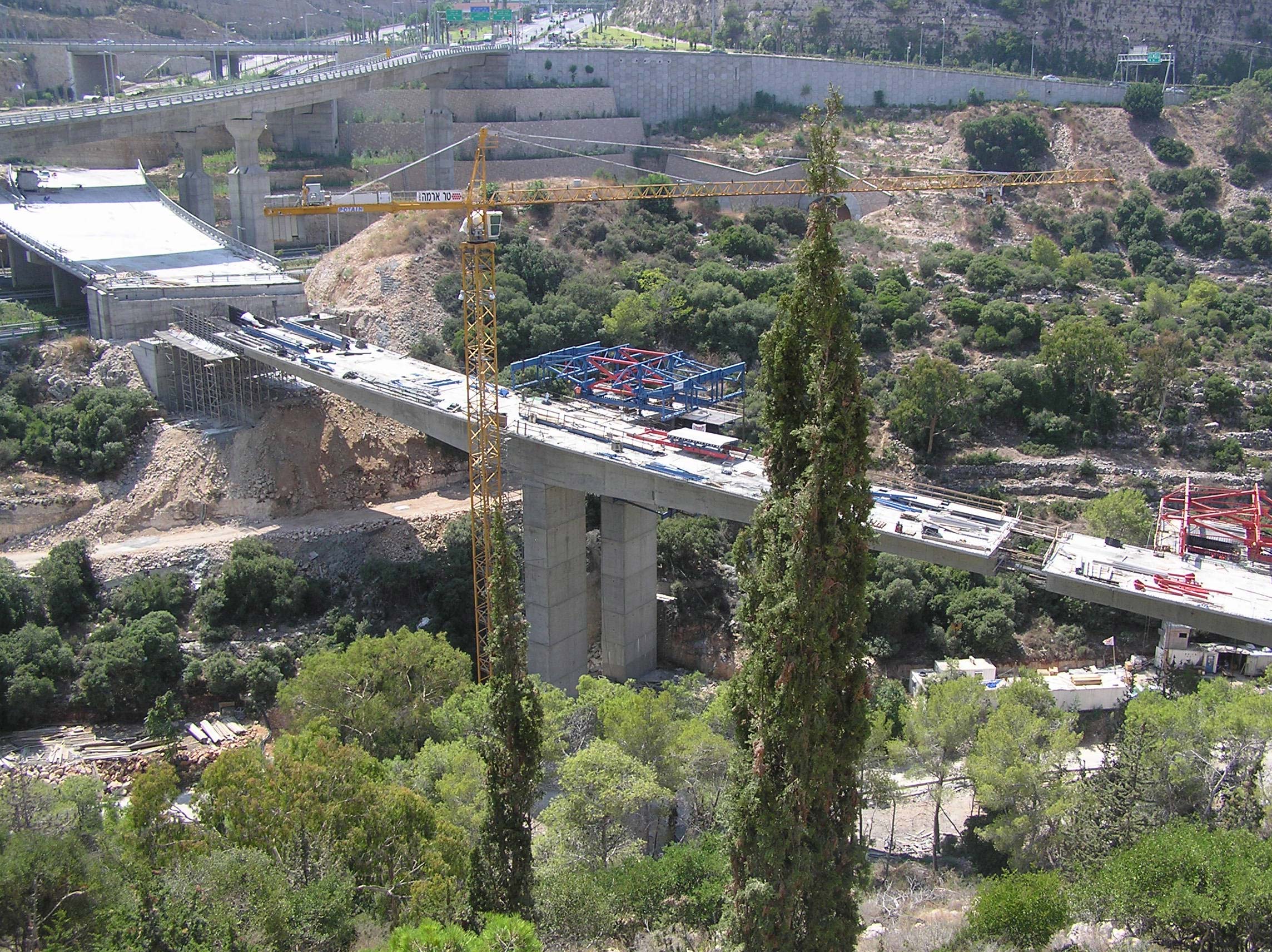

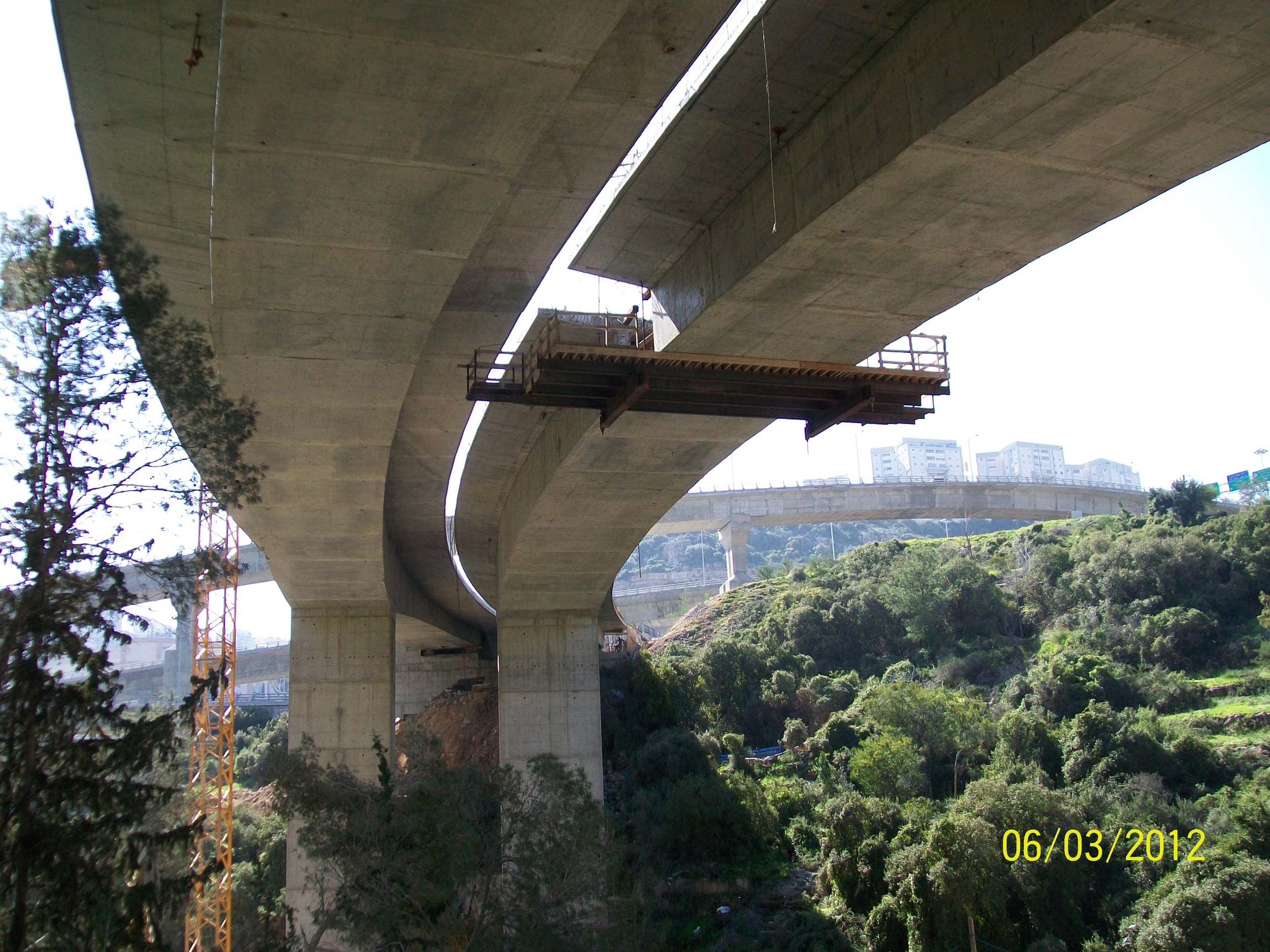

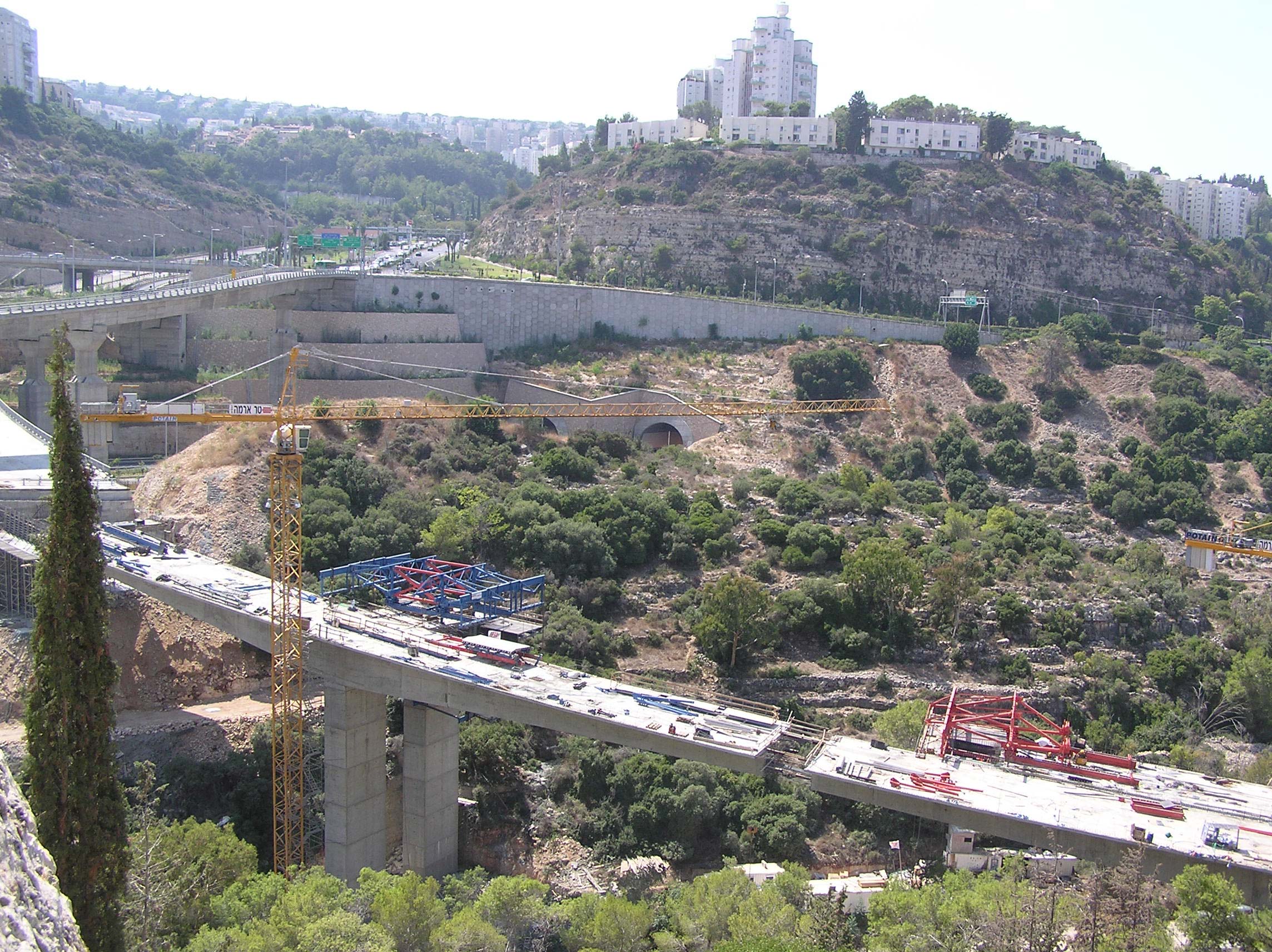

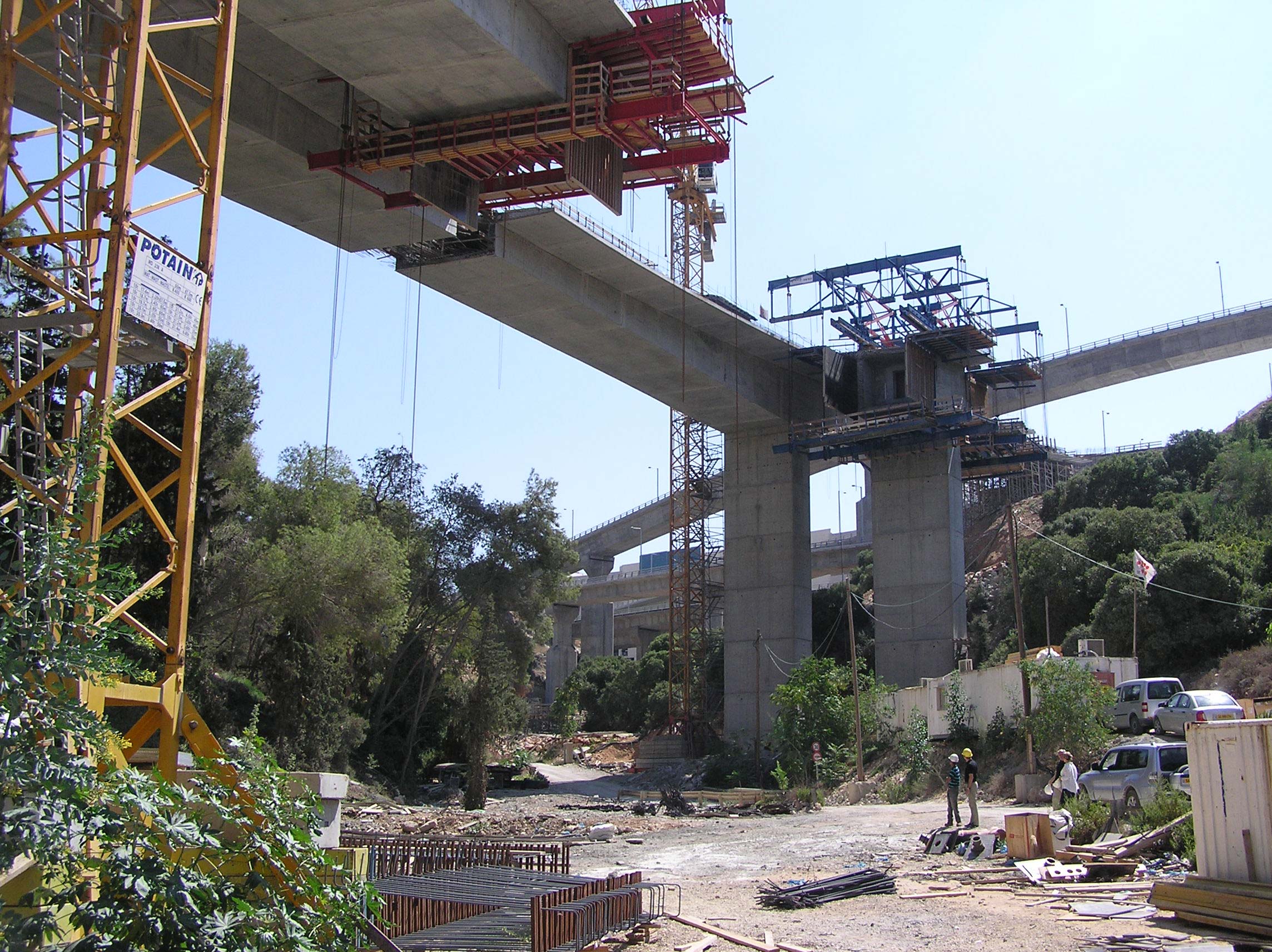

Balanced cantilever construction
Client
YEFE NOF, Haifa, Israel
Contractor
TERRE ARMEE Ltd., Israel
