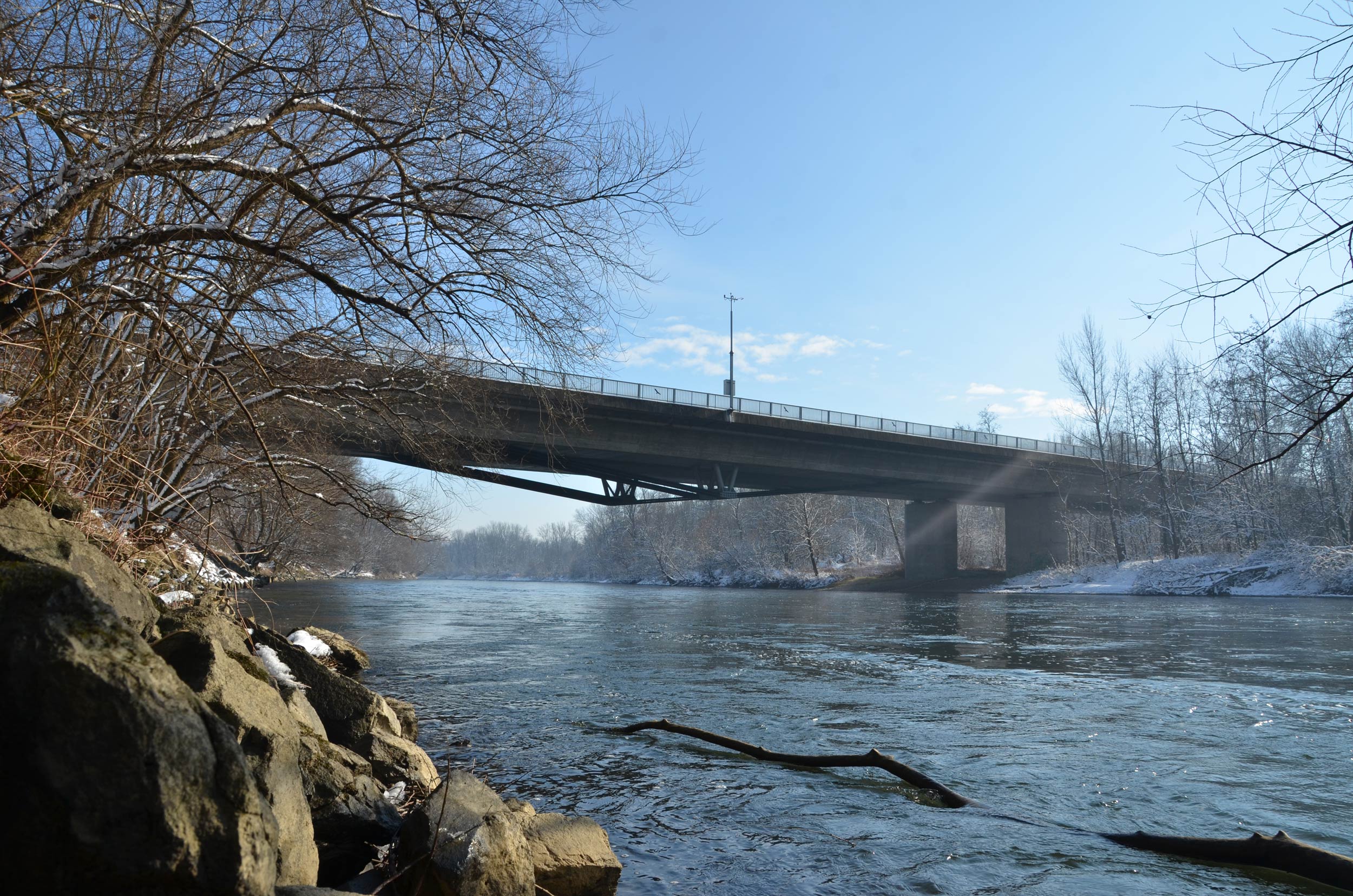

Bridge over Mura River

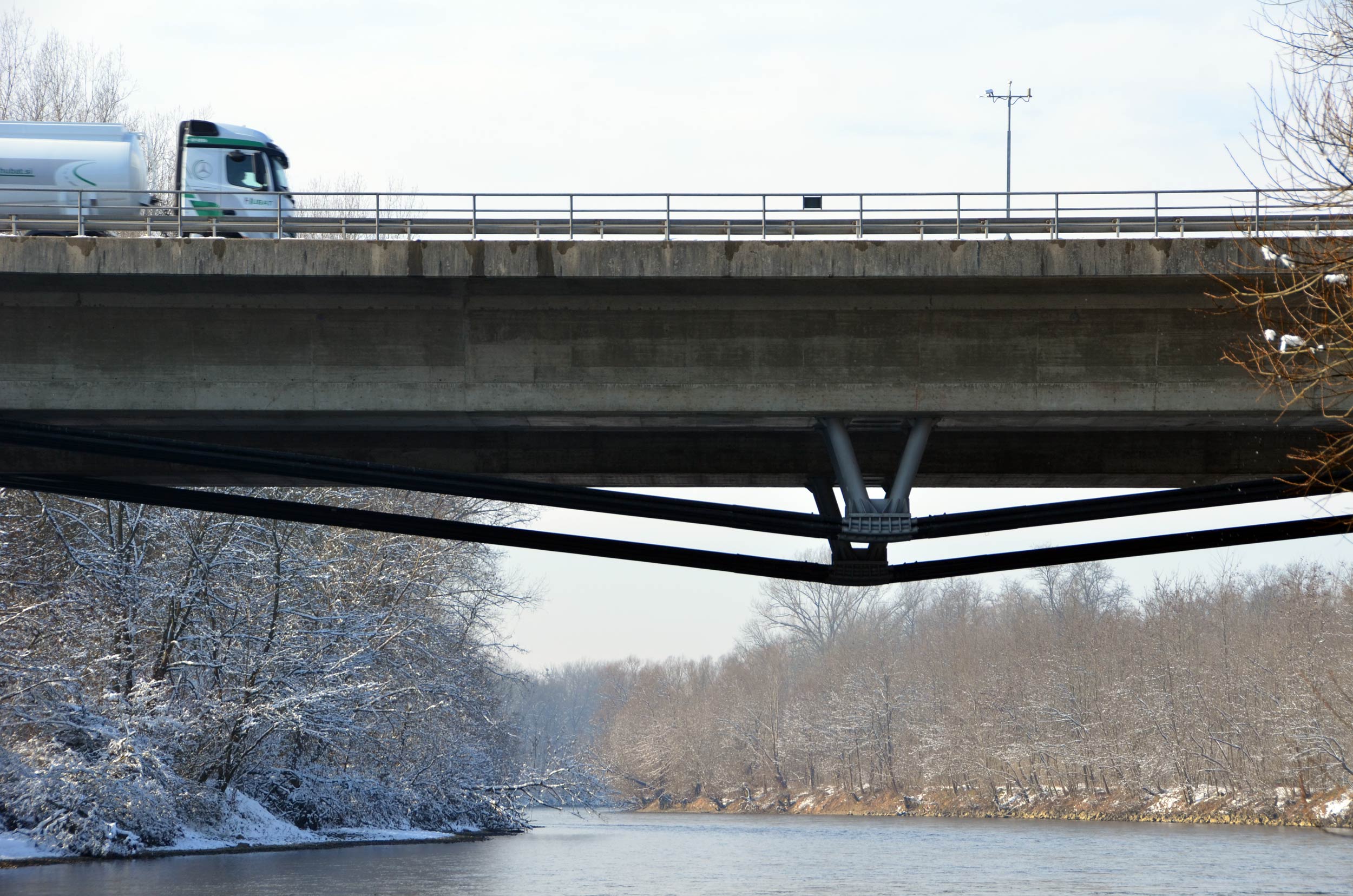

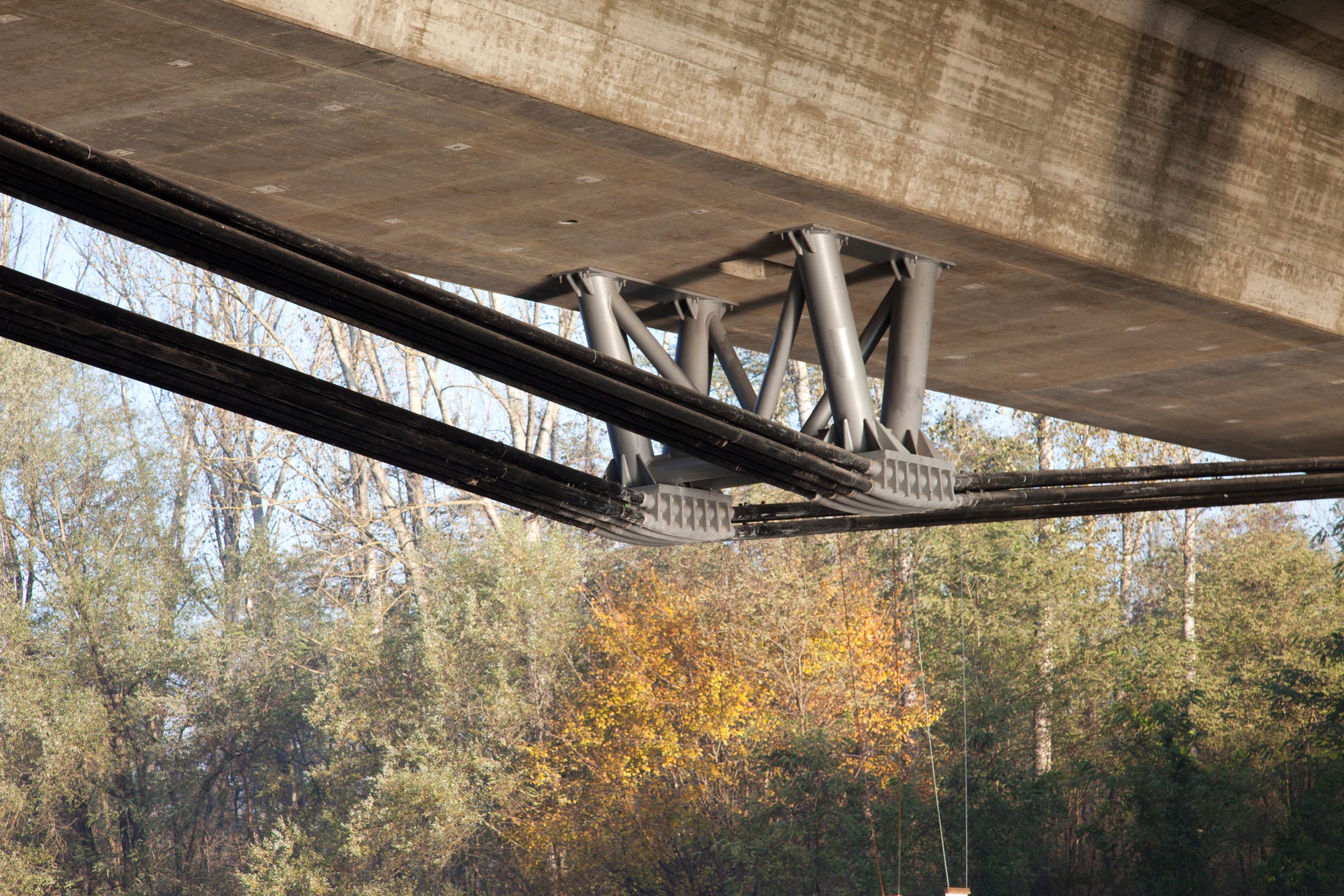

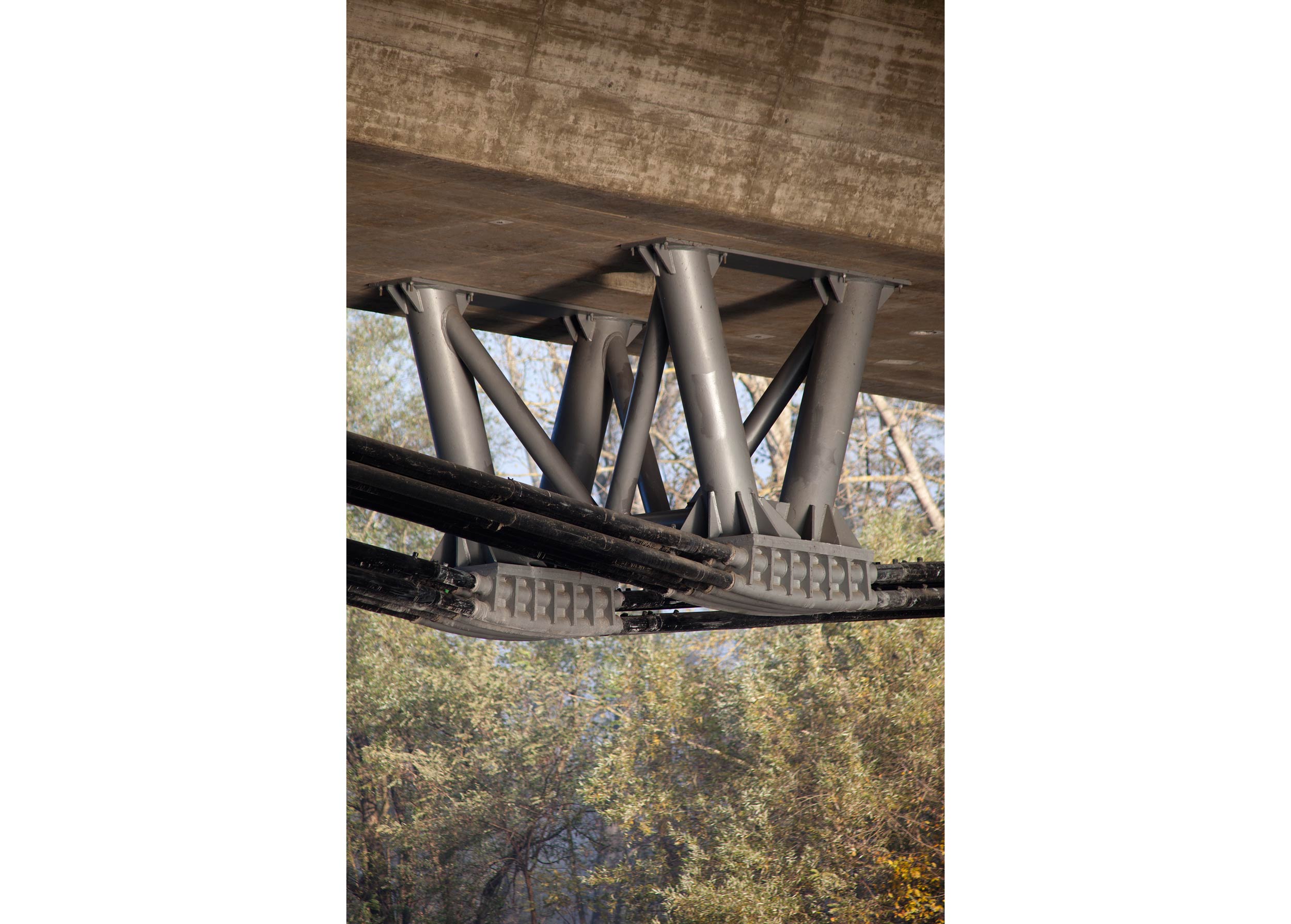

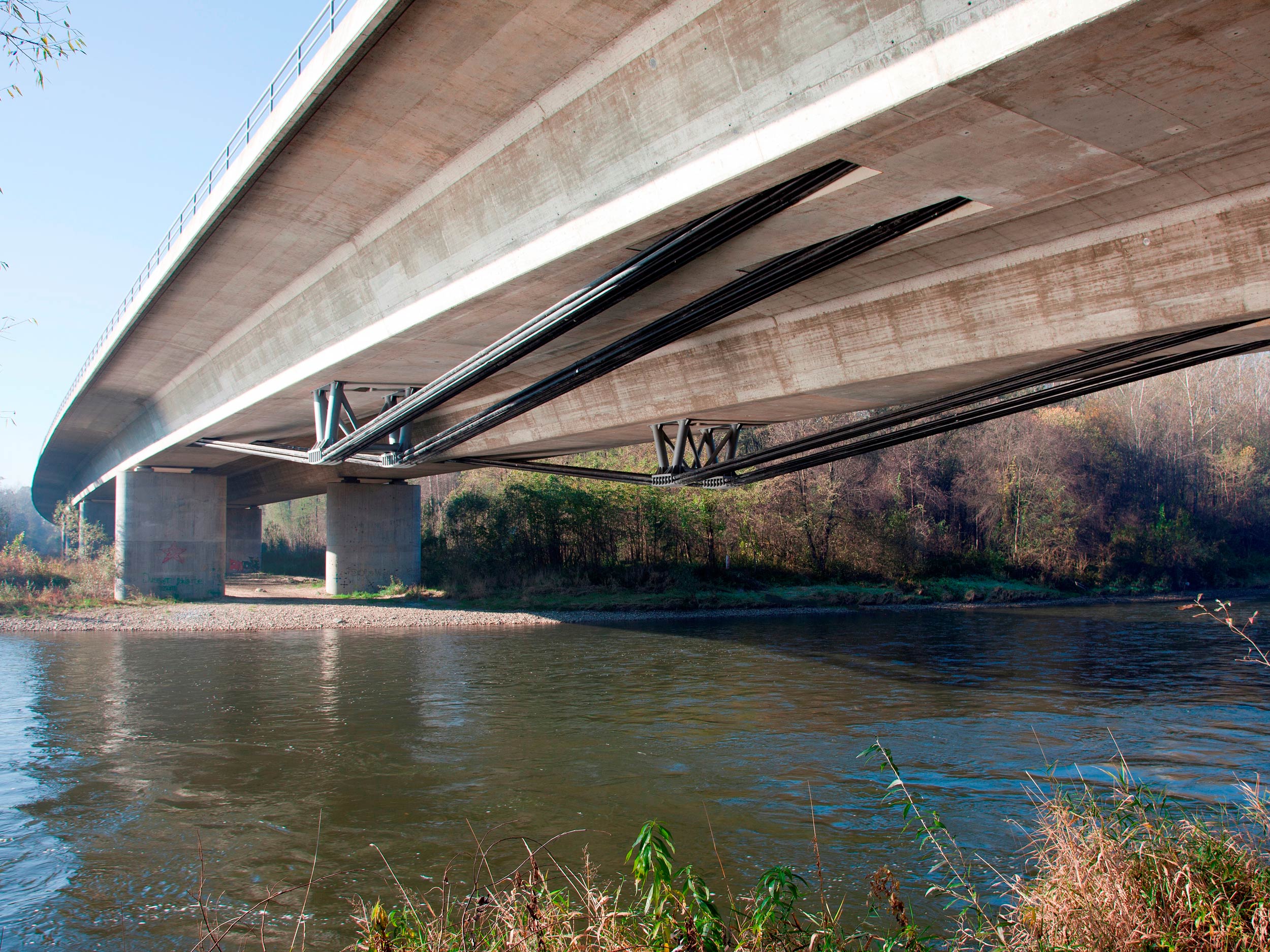

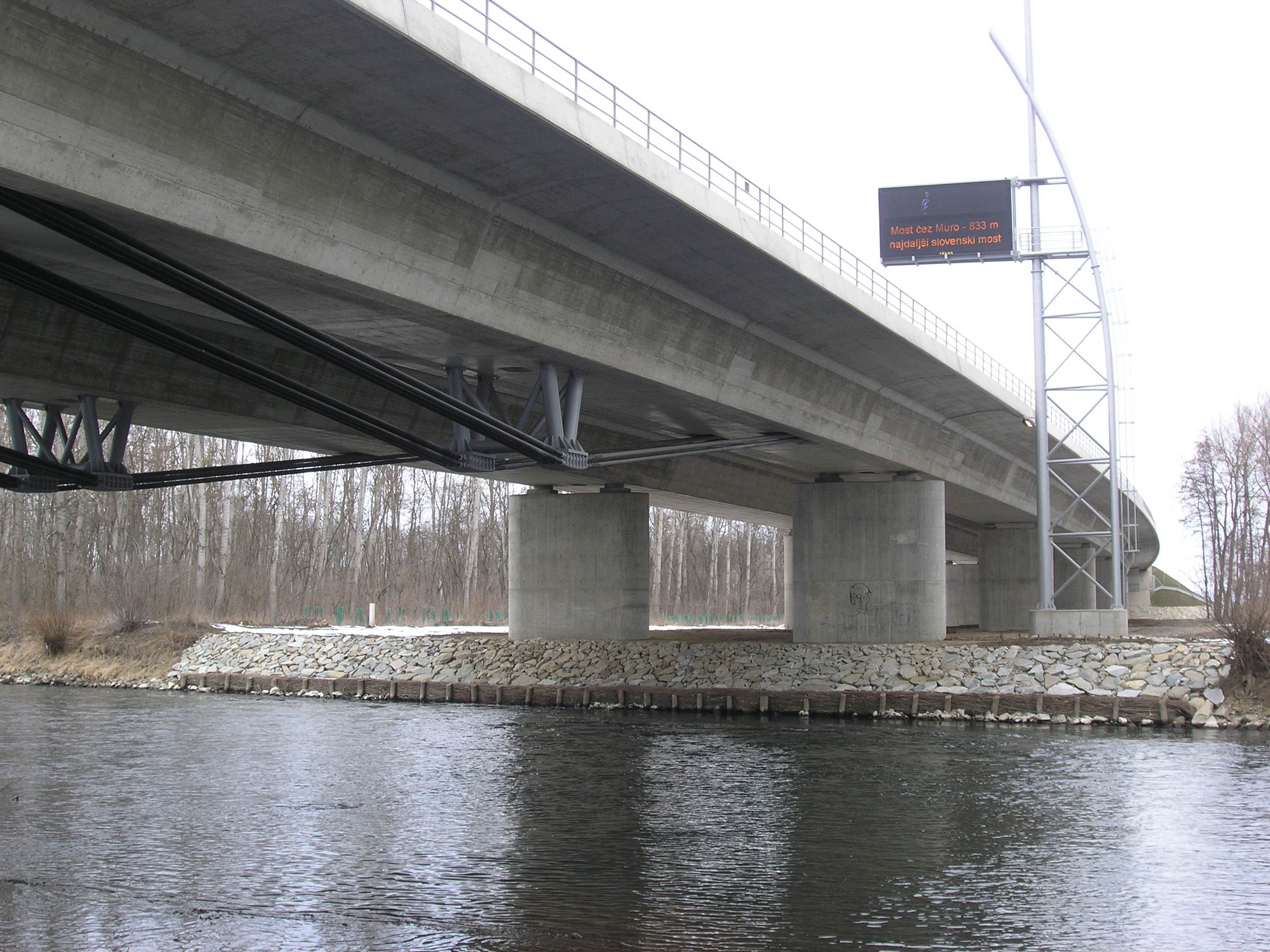

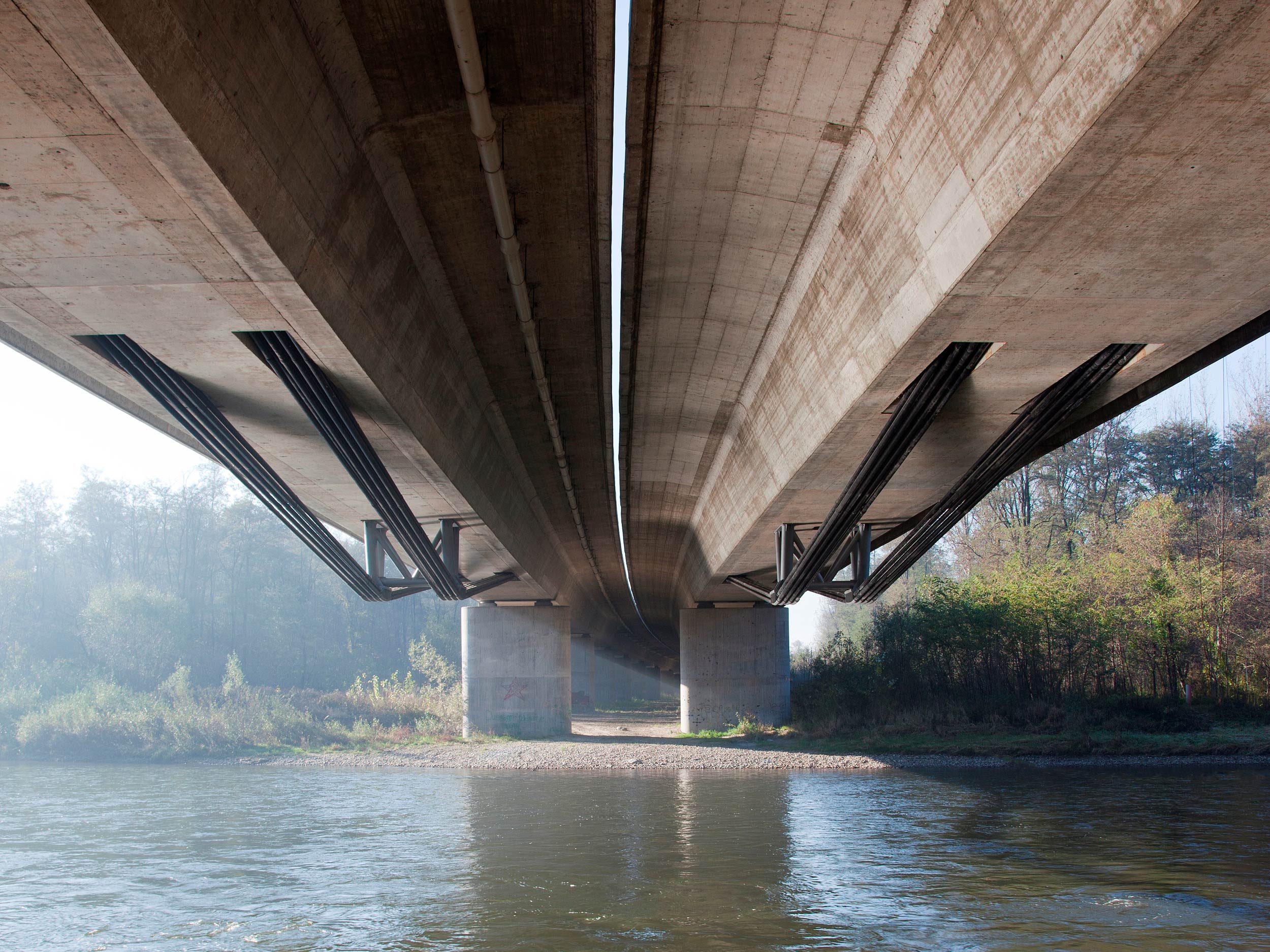

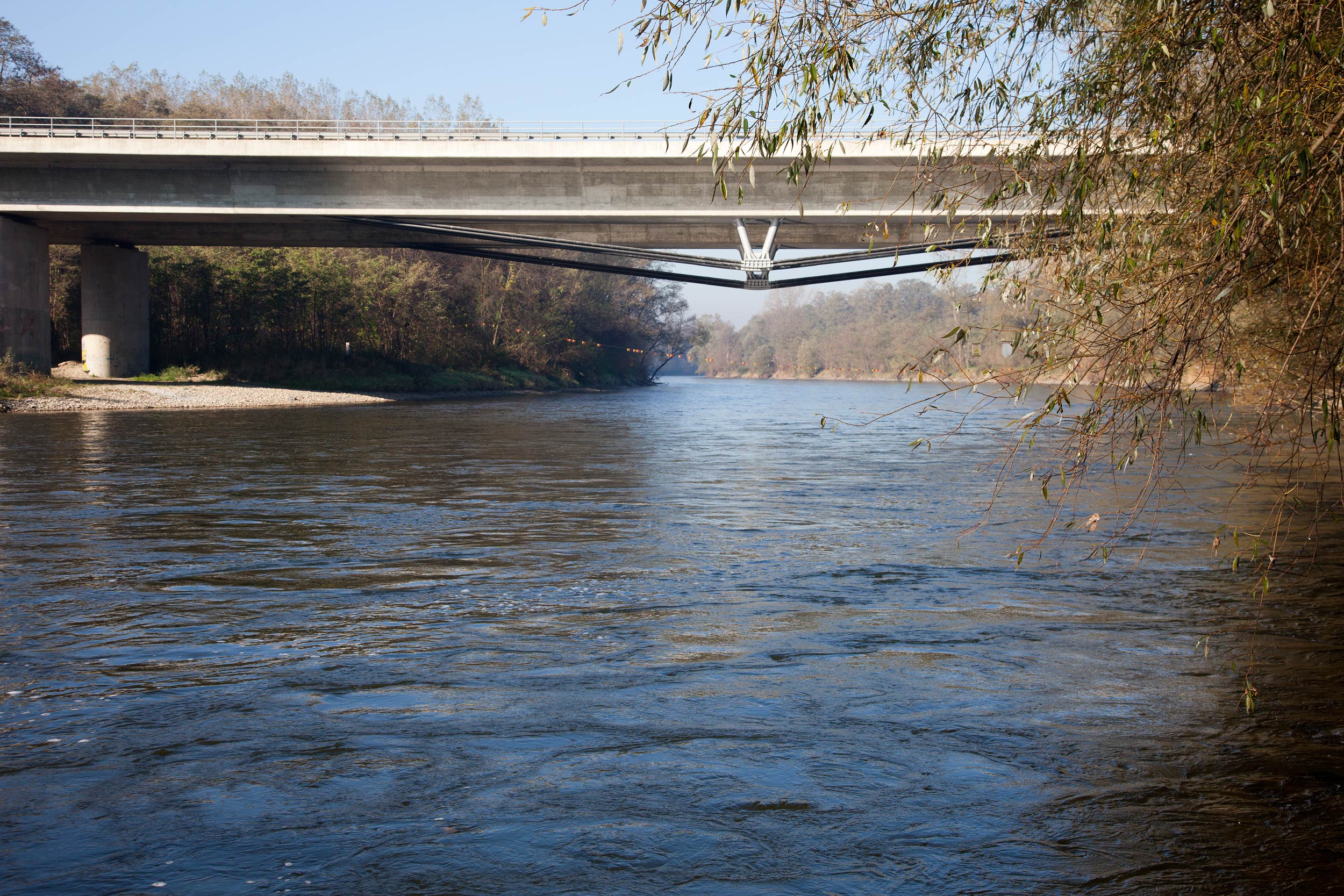

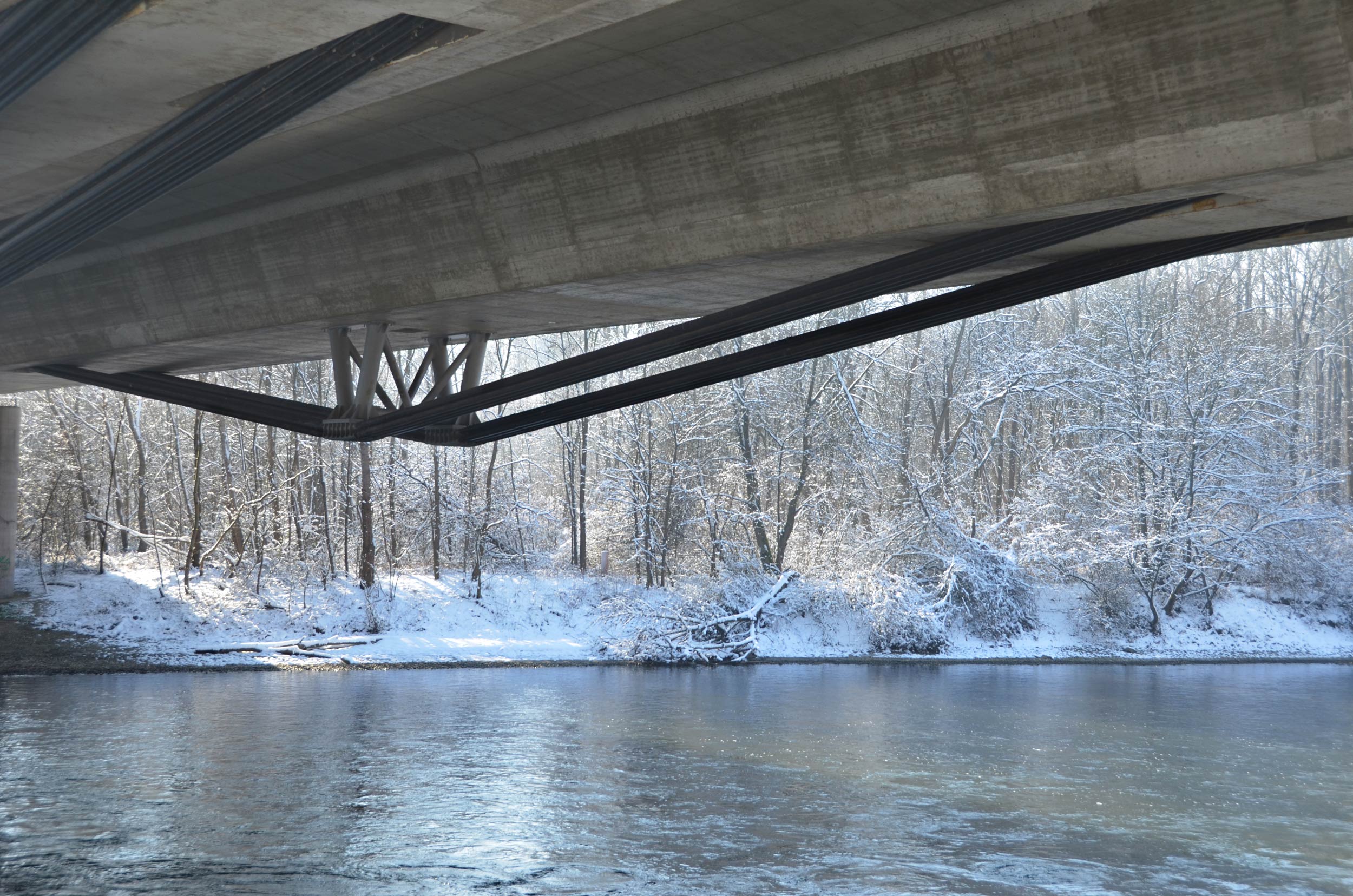

Within the design competition Ponting proposed four different designs for the treated bridge; Composite truss structure, pre-stressed concrete frame structure, concrete arch structure and a continuous pre-stressed structure with an outer steel hinge in the main span.

The proposal with the outer steel hinge in the main span reached third place at the design competition but was after tender chosen as the most suitable for construction.

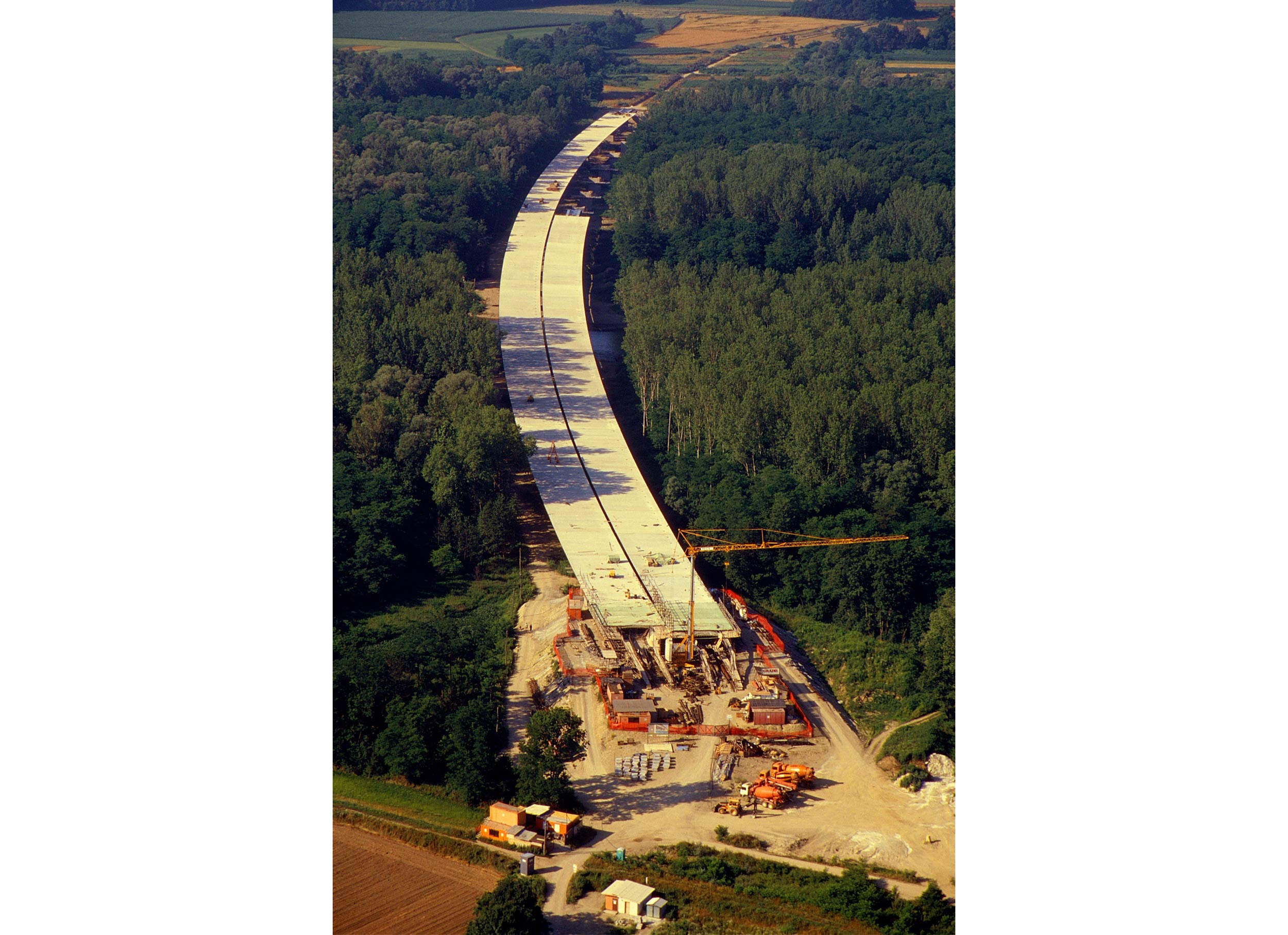

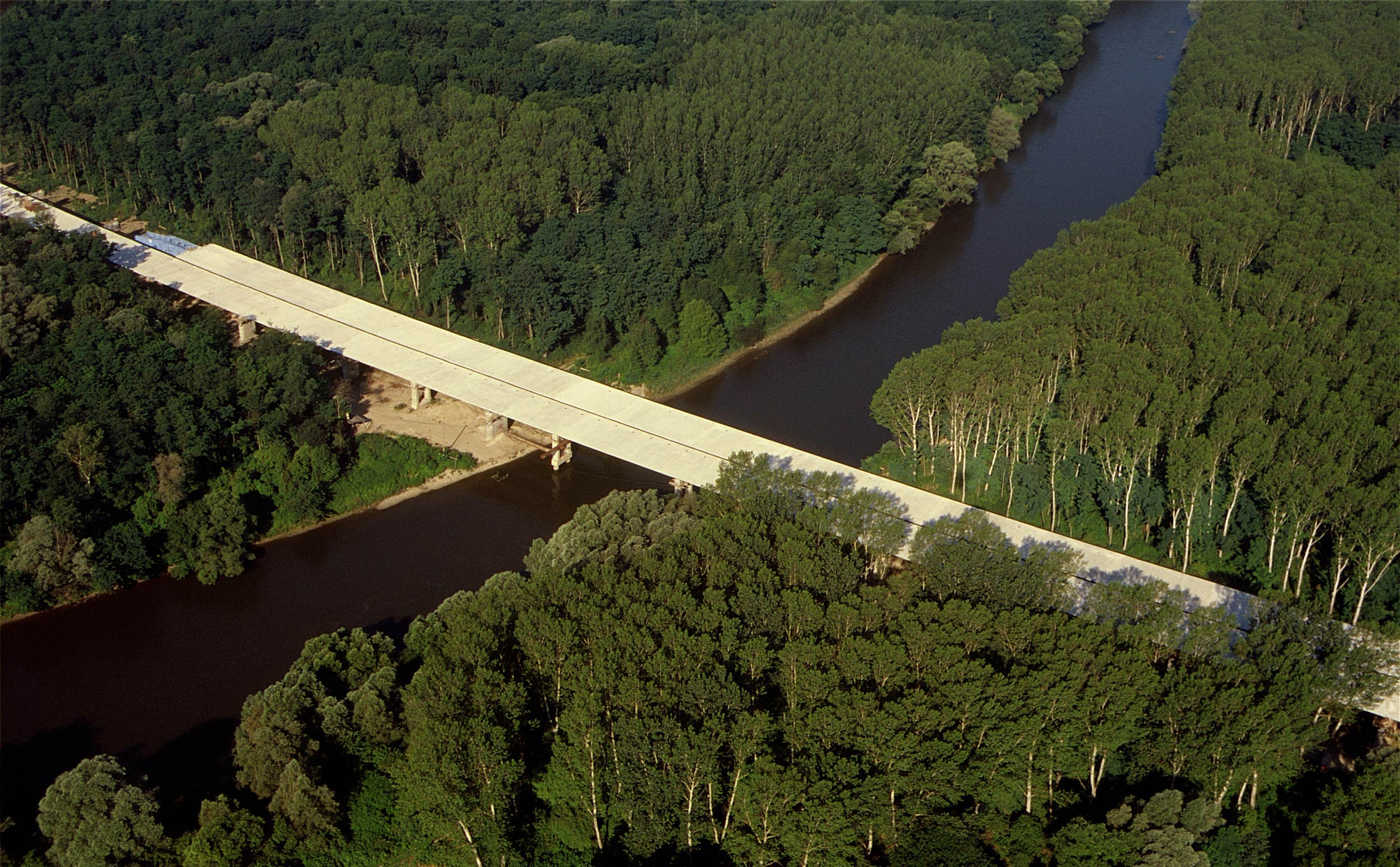

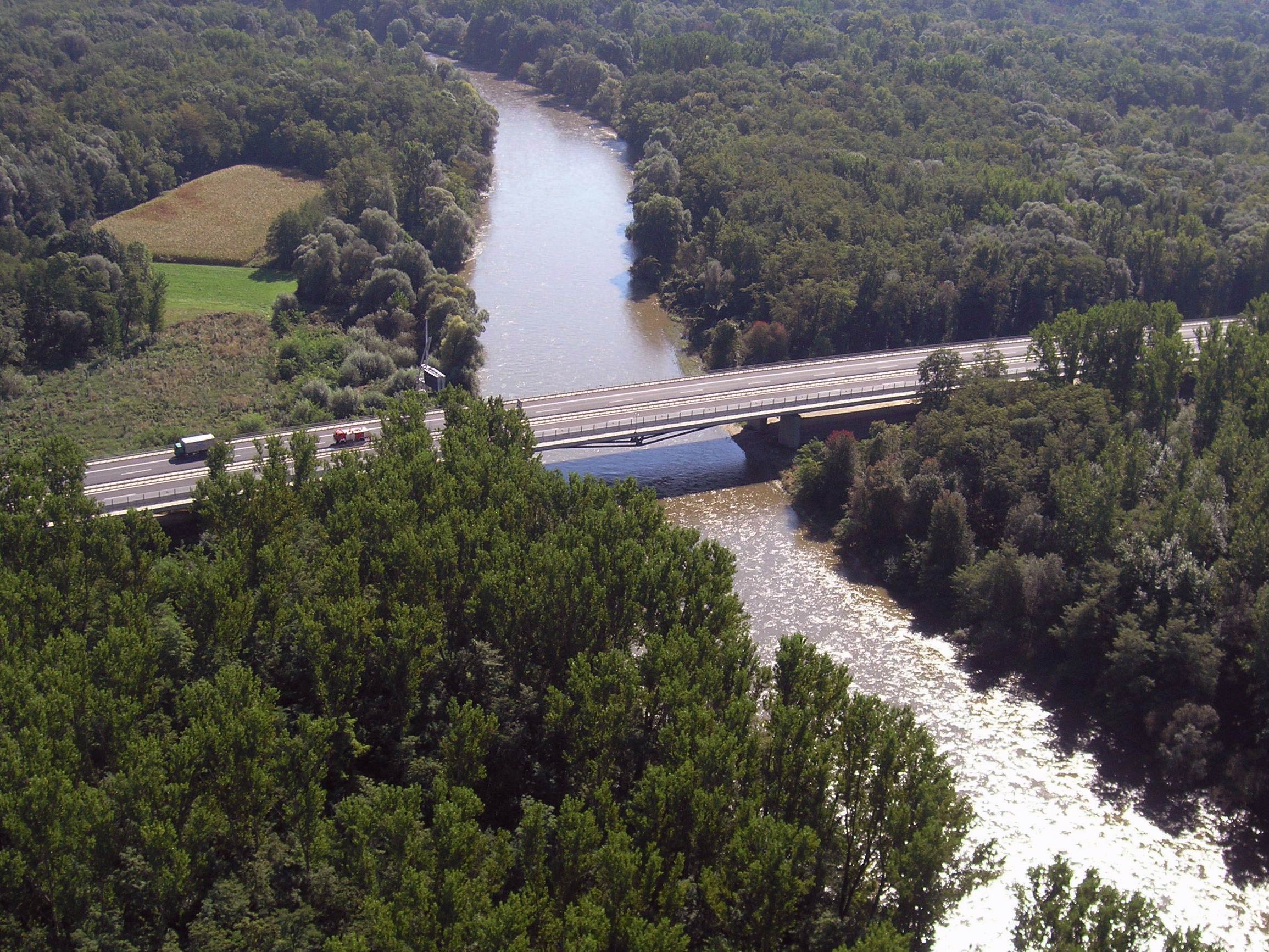

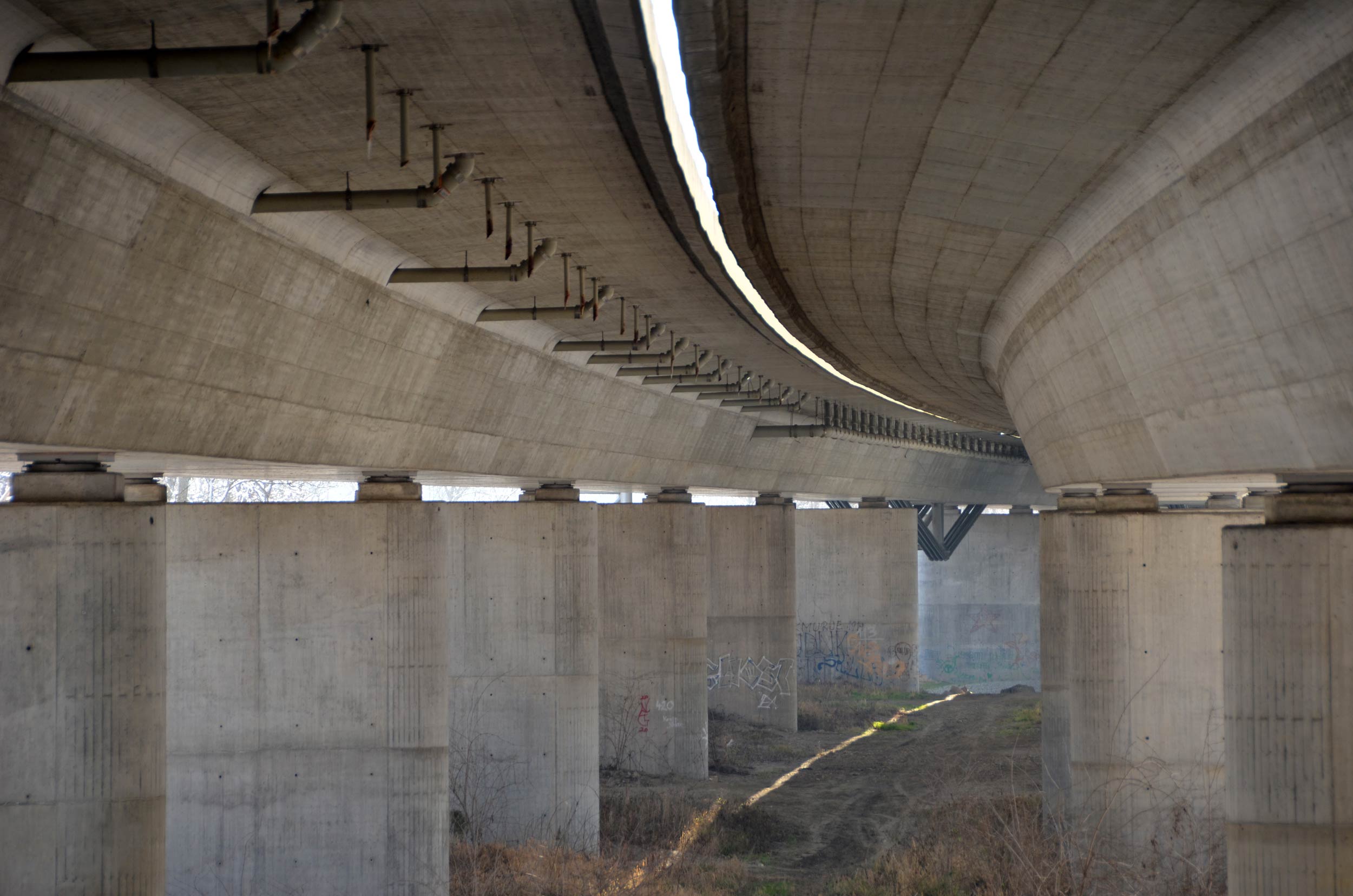

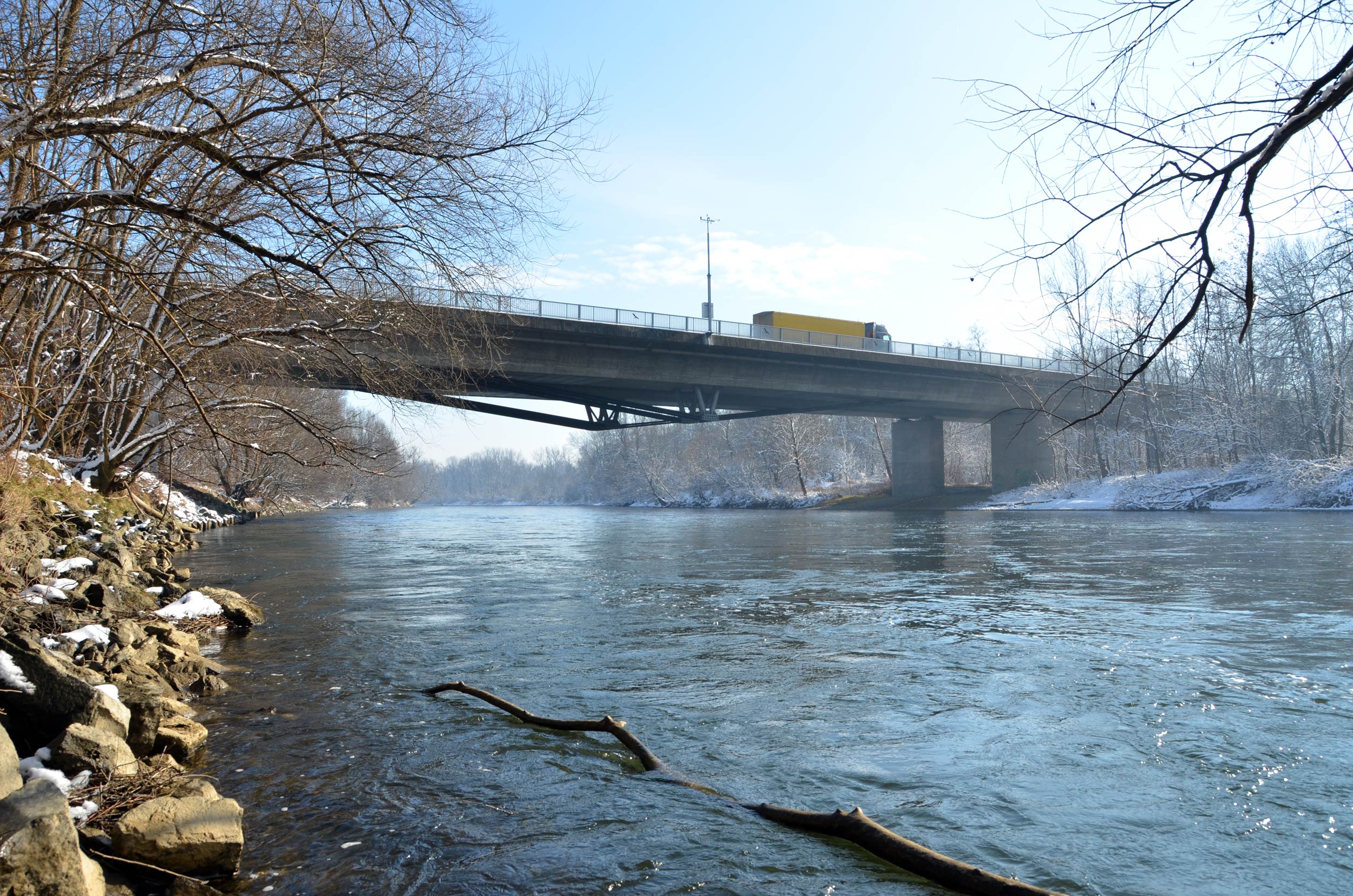

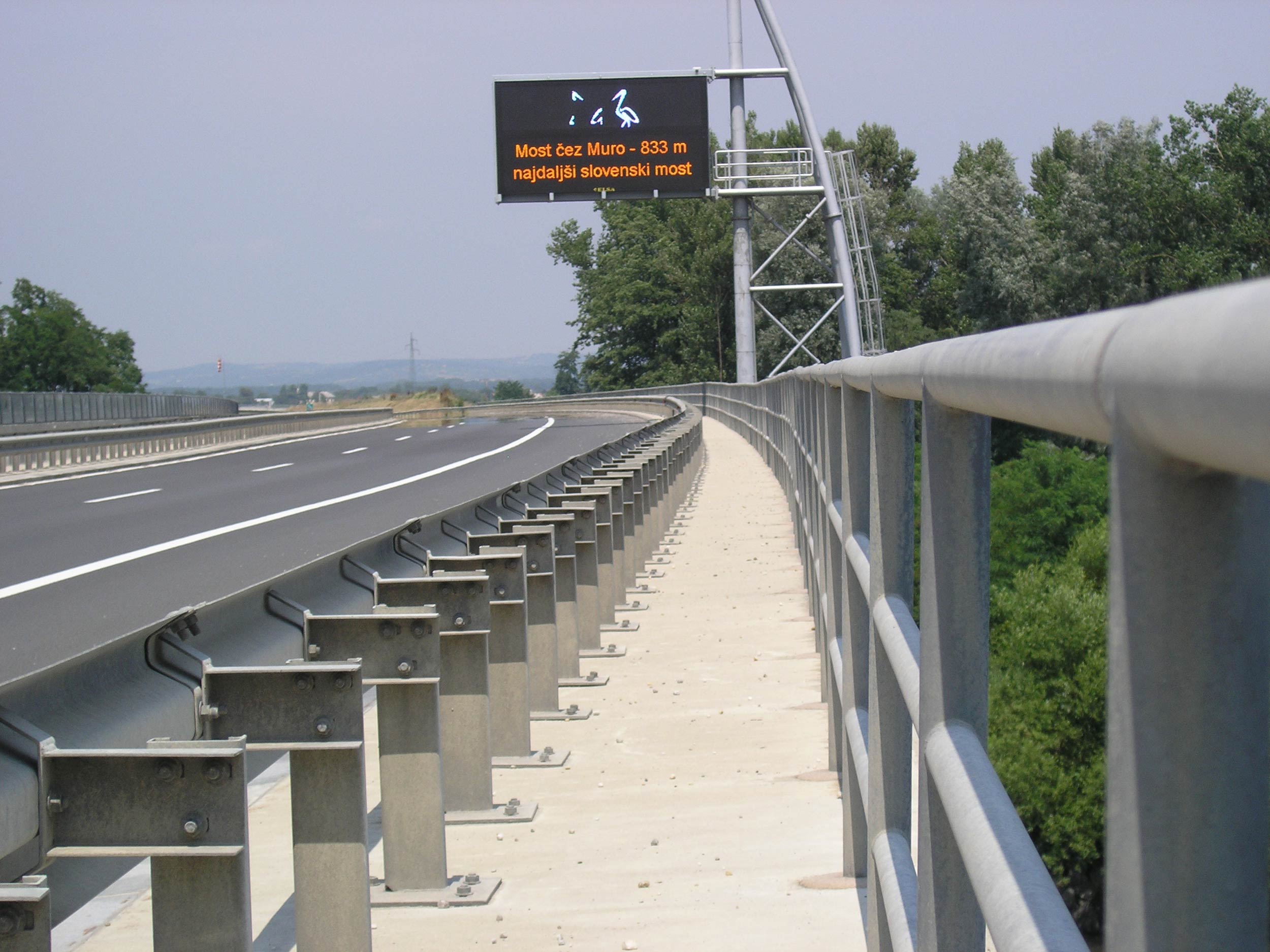

The bridge over Mura River was at the time the longest bridge in Slovenia, bridge length over 20 spans amounts 830 m and was constructed by incremental launching construction technology.

Project type
Highway bridge
Location
Highway Vučja vas - Beltinci, Slovenia
Year
2003
Status
Completed
Ponting Services
Competition / Preliminary / Final / Detailed design
Length
2 x 833 meters
Max. span
80 meters
Area
23.174 m2
Foundation type
Deep on bored RC piles, diameter 1.2 m
Structure
Continuous pre-stressed concrete structure
Construction

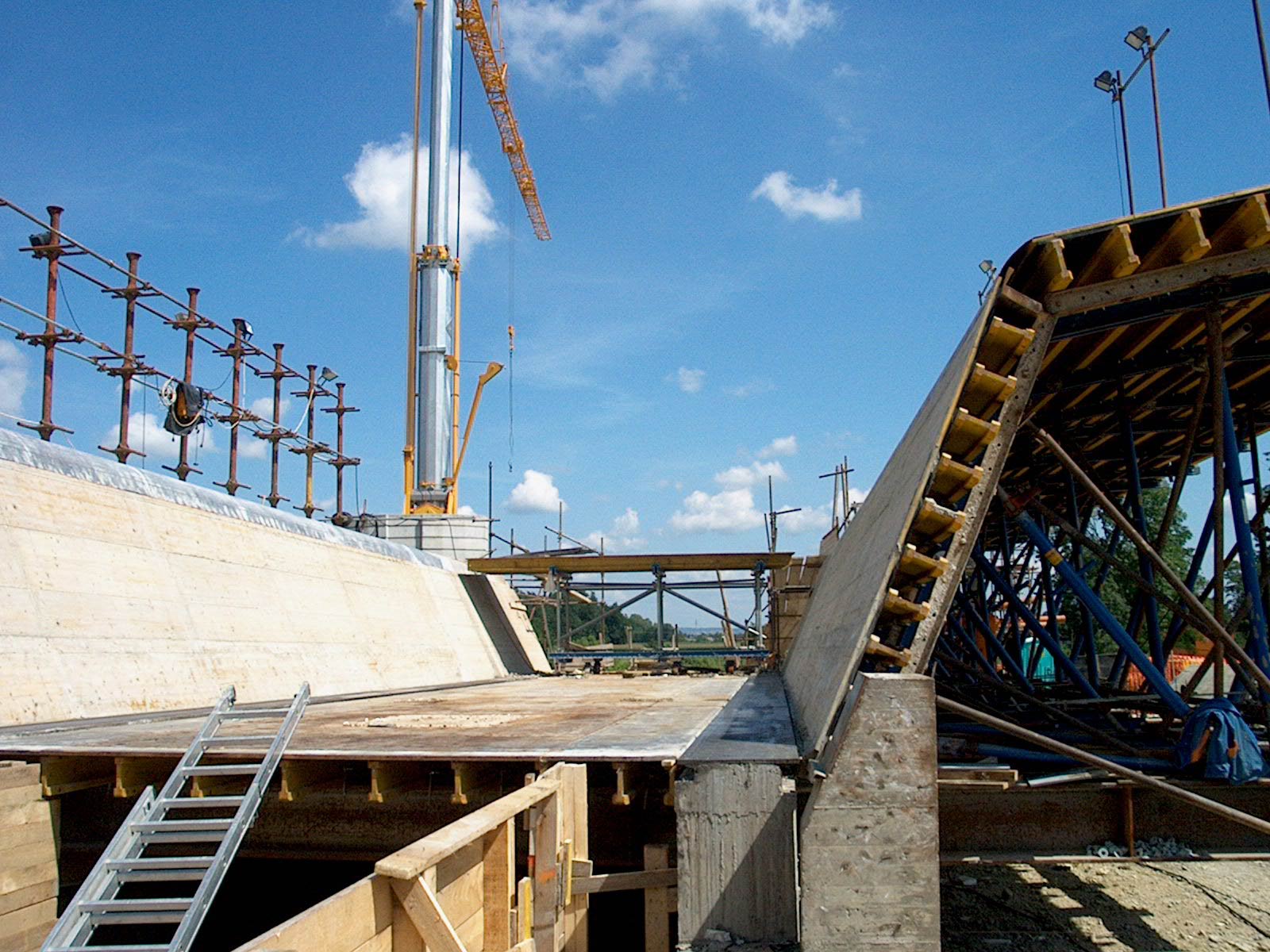

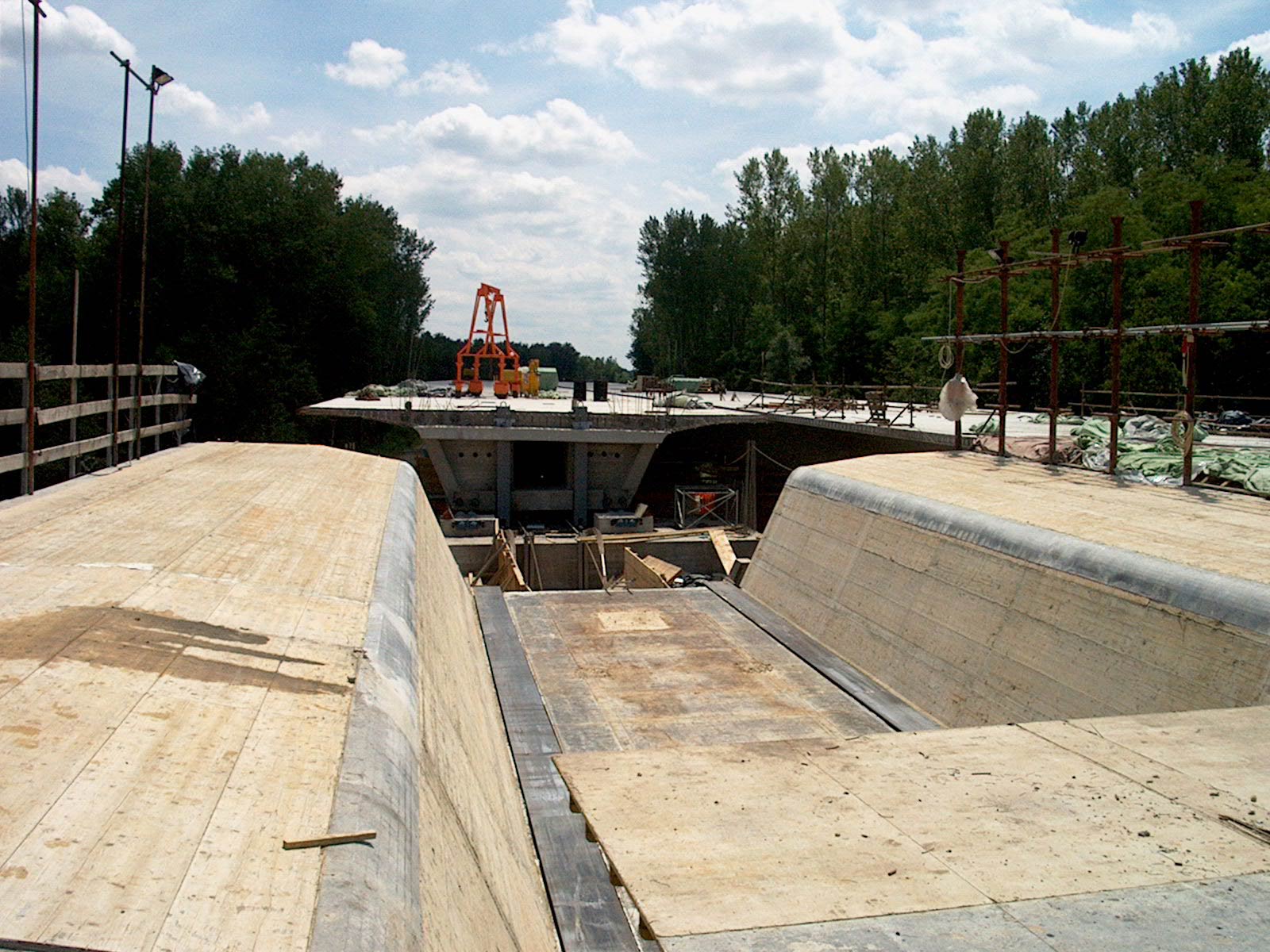

Incremental launching construction method
Client
DARS d.d.
Contractor
GIZ Gradis, Gradbeno podjetje Ljubljana d.d.
Awards
SCE Award 2004 – Ljubljana, Slovenia, 2004
Publications
MARKELJ V. The bridge over Mura River. Conference fib. Concrets Structures: the Challenge of Creativity, Avignon 2004.
AŠANIN GOLE P. Most čez Muro. Viadukti in mostovi na slovenskih avtocestah, 2004, 106-113.
